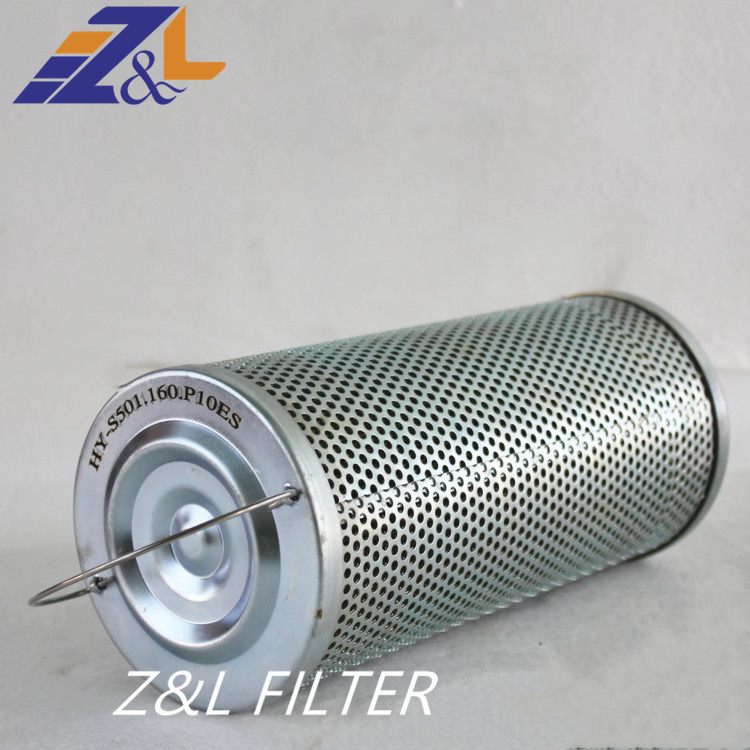

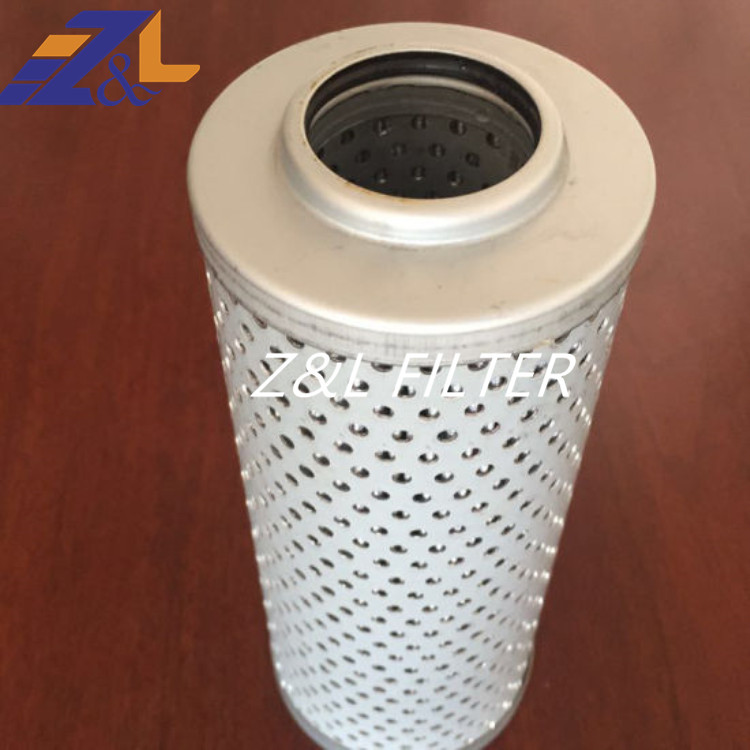

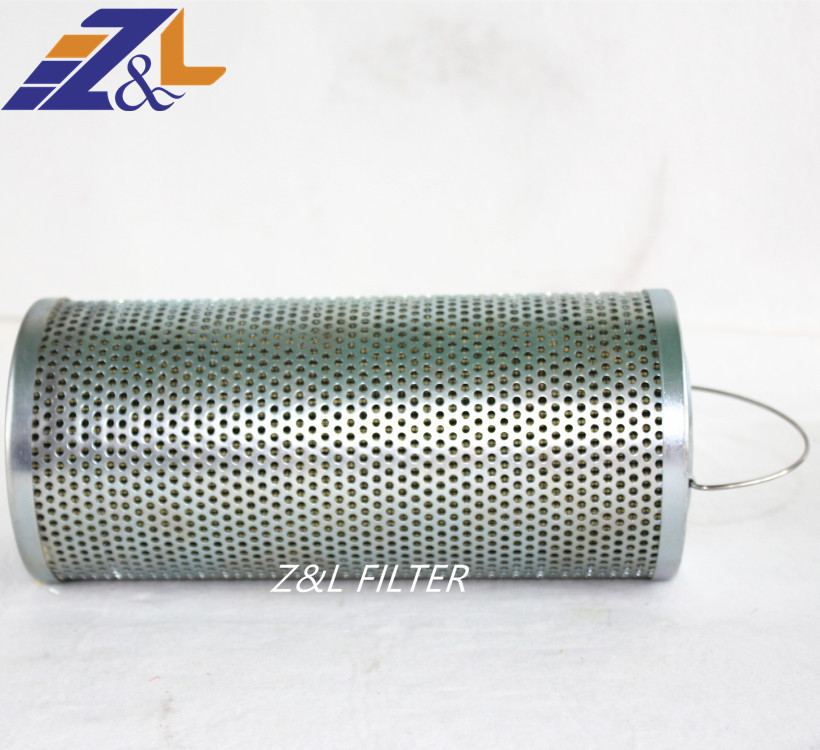

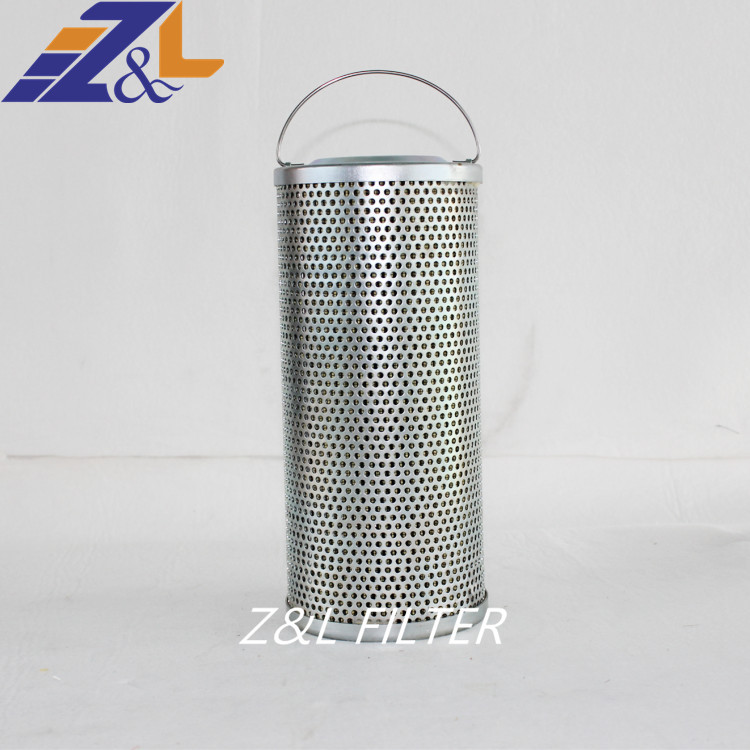

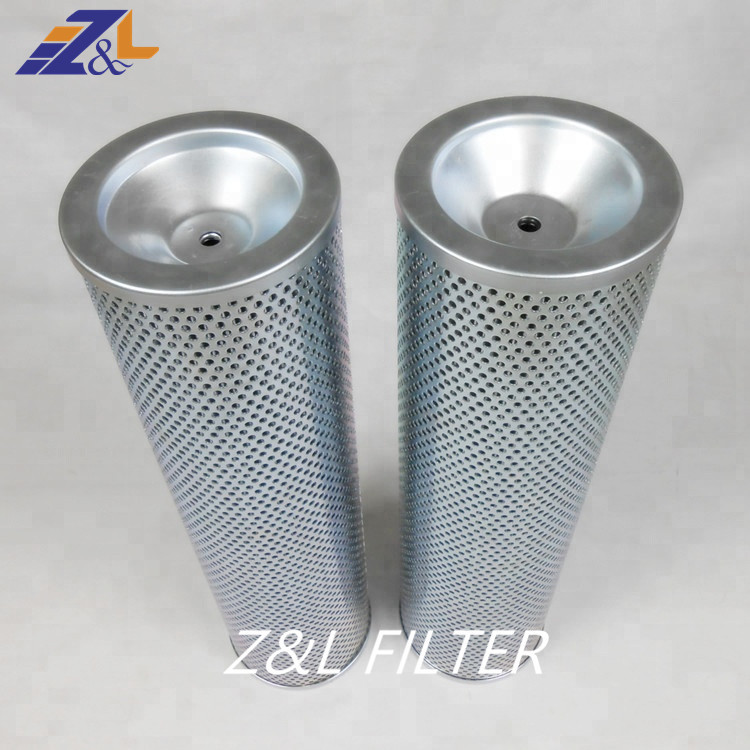

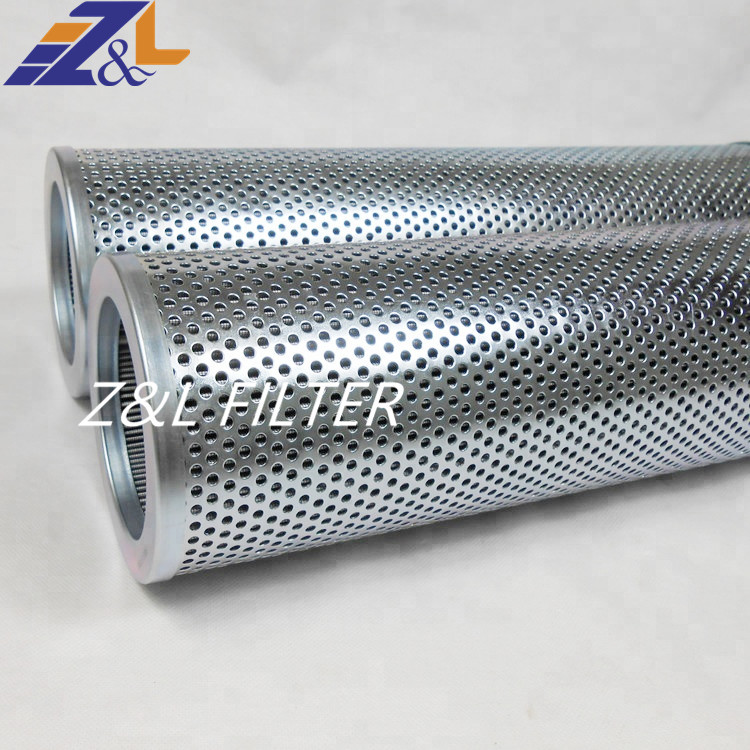

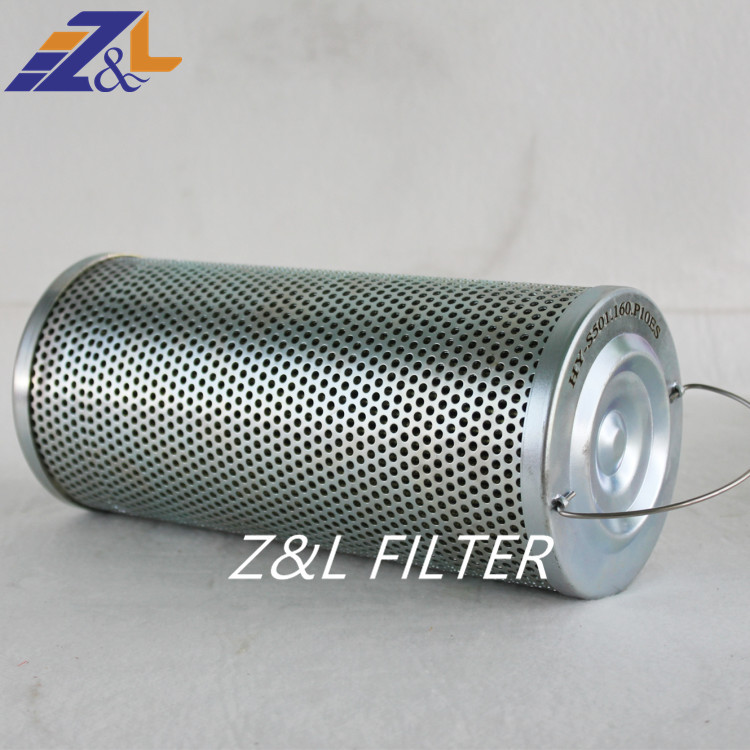

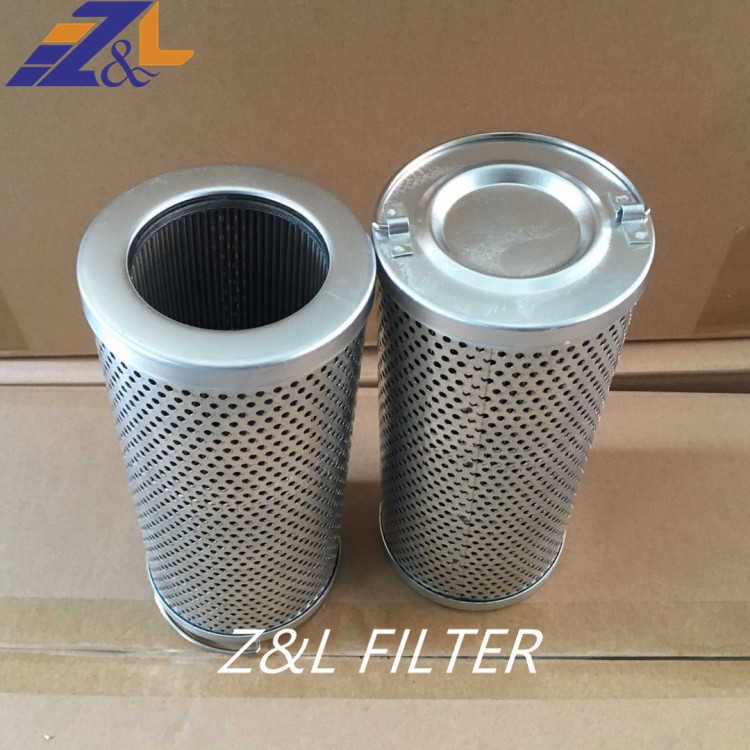

ZL-COALESCE16

INQUIRY
Description
Quick Details

Product Introduction
Z&L Filter supply drilling machine Line gap filter hydraulic filter cartridge Replace Leemin STXX-100*50
Z&L Hydraulic filters are mainly installed on the suction oilway, oil pressure pipeline , return oilway, and bypass system.effectively used for removing particles and rubber impurities from the hydraulic system, providing a raised cleanness in hydraulic systems to ensure accurate operation of the systems and prolonged service life of the accessories, and to reduce hydraulic system's downtime and hence improve the performance of the system , also helps in reducing component repair cost of the system. It plays an important role in protecting a hydraulic system. Hydraulic filters are made by single layer or multi-layer metal mesh and filter material, layer number and wire mesh are different according to conditions of use and purpose..Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works , Energy & Mining, industry
Core Components:filter element
Condition:New
Efficiency 99.98%
Construction:Cartridge Filter
Place of Origin:Hebei, China
Brand Name:Z&L FILTER
Dimension(L*W*H):6inch
Filter material: galvanized steel cartridge ,glass fiber ,ss caps and bottoms
Support:polypropylene
End cap:polypropylene
Sealing materia:rubber ,
Maximum differential pressure:4.0Bar
terilization temperature:120℃ per min
Certification:ISO9001,CE,SGS
Product Introduction
Z&L filter factory supplying high quanlity steam turbine auxiliary filtration oil gas separation hydraulic filter element coalesce filter
The element is specifically intended to keep annular velocities constant across the entire height of the element. This was accomplished by introducing a gentle taper in the element, so that the annular space on the outside of the element gradually increased from the bottom to top, keeping pace with the external gas flow as it exited the element.

Standard construction features include steel tubes to prevent corrosion, steel or glass filled nylon end caps with epoxy adhesive to assure a thorough bond to the media, and Buna-N gaskets to give positive sealing. For special applications, different materials can be used for the tubes, end caps and gaskets. A knitted sock is also put on each cartridge to enhance the drop size. Media come in two basic types – all fiberglass and pleated media/fiberglass. By combining various grades of media materials, the optimum balance can be achieved for each application.

In addition to removing liquids, the coalescer cartridge acts as a high efficiency filter. This gives both a dry and dirt-freeeffluent A coalescer cartridge removing water from kerosene. Large (coalesced) water drops break away from the cartridge surface and sink into the sump area. Visible at the bottom is the interface between the kerosene and the settled water.

Product Parameters
Product Name steam turbine auxiliary filtration oil gas separation hydraulic filter element coalesce filter
Filter medium glass fiber
Support layer Carbon steel
Filter cage Carbon steel
Pore size 0.1, 0.2, 0.45, 0.65, 1, 3, 5 (um)
Length 4", 5", 10", 20". 30", 40"
Sealing material Silastic, NBR, EPDM,
Airtight method: thermal bonding technique
Effective filtration area 0.4~0.7m²/10"
Diameter 69.0mm
Max. operating temperature 90°C,(ΔP≤0.1Mpa)
Max. positive pressure 0.42Mpa(25°C)
Max. back pressure 0.28Mpa(25°C)
PH value  1--13
Sterilizing temperature 121°C  30min
Product Advantage

Multi-layered media for increased solids holding capacity
• Ultra-fine solids removal
• Maximum water coalescence
• Balanced cartridge flow characteristics
• Recommended maximum operating temperature: 240°F (115oC)
• Withstands in excess of 75 psi differential pressure
• PH range from 5 to 9
• Screw base or open-end configuration
 Production Application
• Gas Processing Amine and glycol
• Natural Gas Production & Gathering Amine, glycol, produced water, well completion fluids
• General Industrial Pre-R.O., well injection, bottle wash, water, solvents,acids, alkalis, alcohols
• Industrial Water, solvents, acids, D.I. , alcohols
• Food & Beverage Water, flavorings, beer, wine, vinegar

Our Service

Core advantages: We can provide competitive products.
1. Stable quality.
2. Quality service.
3. Reasonable price.
4. Timely delivery.
Our advantage 1. We are manufacture with many years of export experience, good quality and low price.
2. Products are sold to many countries in the world.
3. Custom sample processing, one-on-one service for engineers.
4. Short delivery time, free samples and OEM ODM service.
5.24 hour customer service online service.
OEM  ODM: We can make filters according to your requirements. Please tell me the photo and size. OEM and ODM are welcome!
Please let us know the following information:
1.Photo.
2.ID, OD, height.
3. Filter material accuracy, filter media.
4. The form of the end cap.
QA: 1. High quality raw materials and advanced technology.
2. Our products are produced in strict accordance with the requirements.
3. High efficiency and high precision to ensure equipment safety.
4. If you have any questions, please feel free to give us feedback and we will promptly make corrections free of charge to ensure that the same problem will not occur again.
