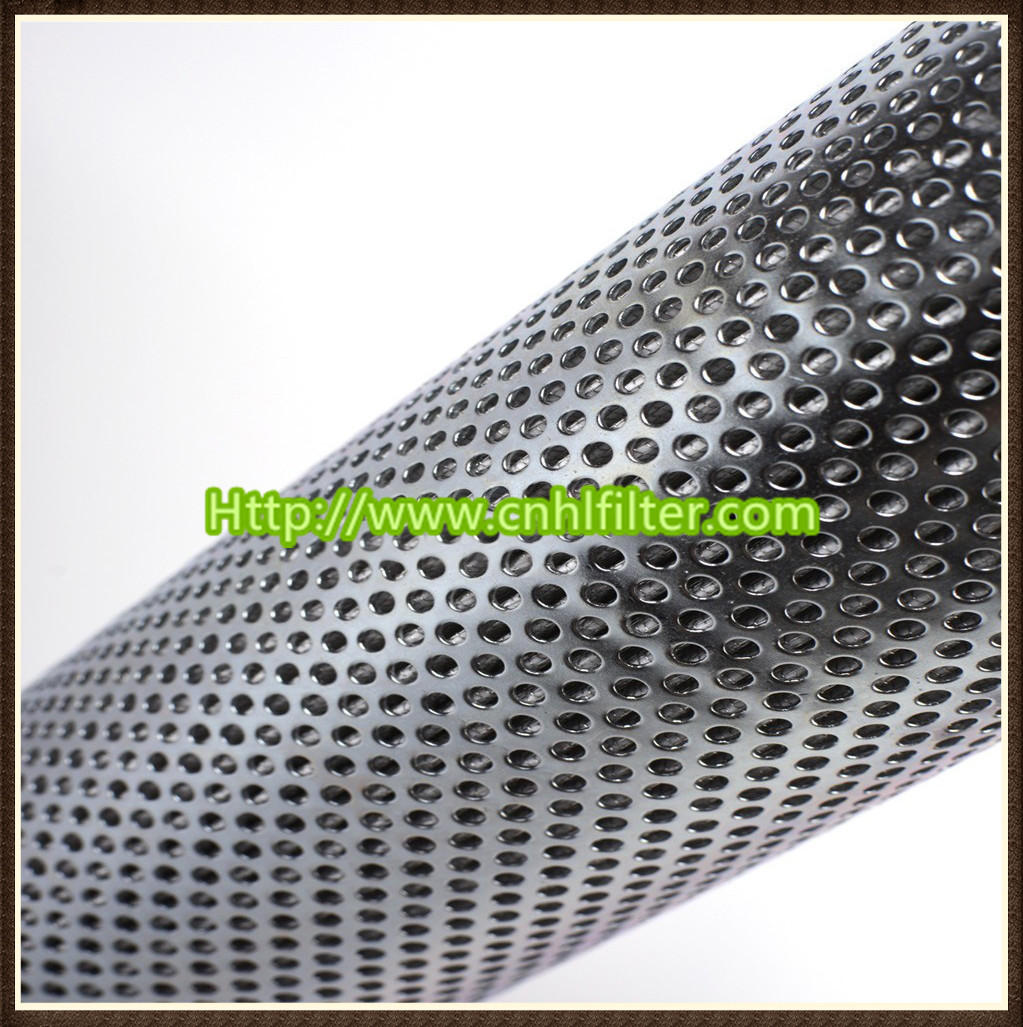

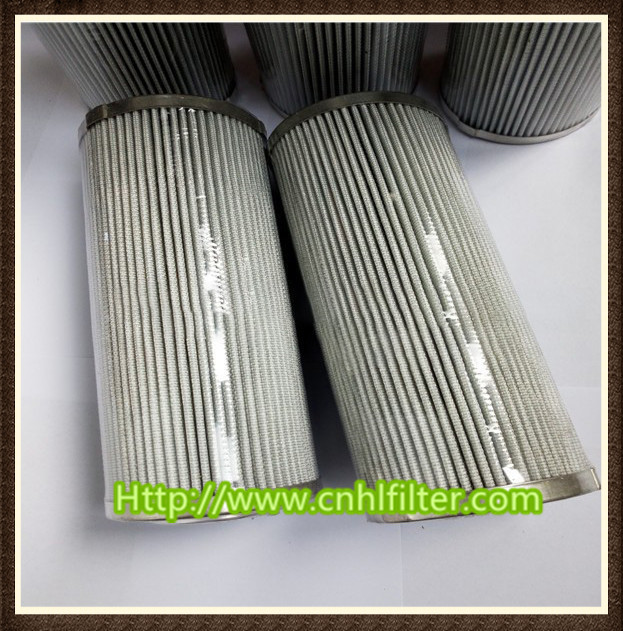

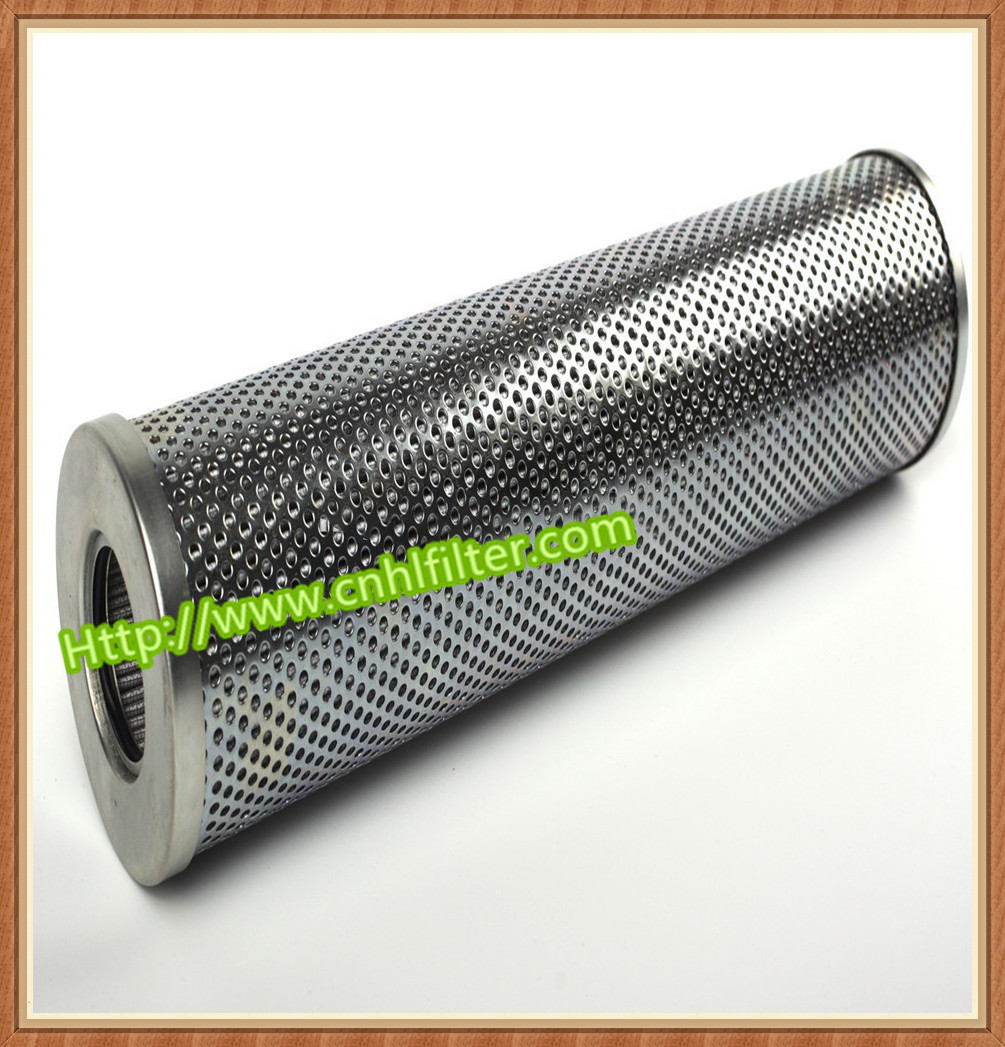

Replacement Alternative Hydraulic ARGO Oil Filter Element V3094008

No.V3094008
Condition:New Type: Press Filter Structure: Cartridge Place of Origin: Hebei, China (Mainland) Brand Name: HL Model Number: NE1 Power(W): 300 Weight: 1.5kg
  • Replacement Alternative Hydraulic ARGO Oil Filter Element V3094008
  • Replacement Alternative Hydraulic ARGO Oil Filter Element V3094008
  • Replacement Alternative Hydraulic ARGO Oil Filter Element V3094008
Desciption
Quick Details
Condition:New  Type:  Press Filter   Structure:   Cartridge   Place of Origin: Hebei, China (Mainland)
Brand Name: HL  Model Number:  NE1  Power(W):  300  Weight:  1.5kg
Dimension(L*W*H):(OD)95*(ID)48*(H)194.5 mm  Warranty: 1 year
material:  glass fiber  size:  (OD)44*(ID)22.1*(H)158.5 mm or according to your request
working temp:  80----+230℃  application:  hydraulic system oil line
Filtration Rating:  1,3,6,12,25μ ...... Filter fineness  filtration efficiency:98%
use:removal solid particles and jelly in the oil line   Lifetime: 4000-6000h
Scope of use: Filter   working max pressure difference:  0.4(Mpa)
Supply Ability  1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Generally, waterproof paper inner layer, paper carton outer, then be put into a wooden case, or as your requirement.
Port;Tianjin/Beijing   Lead Time :  Shipped in 7 days after payment
Hydraulic Oil Filter Products Introduction:
professional hydraulic oil filter is used to replace imported oil filter. It can use to remove the solid particles and jelly to control the degree of pollution of working medium.
1. Filter fineness:1,3,6,12,25μ ......
2. filtration efficiency reach up to 98%
3. working life 4000-6000h
4. adopt multilayer structure filter paper, with high filtration fineness
5. with big pollutant processing holding capacity, and long use time.
6. big traffic density will reduce the filter separator size
7. its glass fiber  layers are carefully set and processed, filtration effect is better.
8. specification and variety is completed,can meet all kinds of filters need.

lubricating oil filters:1. Can make the system oil keep clean quickly. 2. Can prolong the working life of oil. 3.reducing the bearing wear.

Low pressure oil filter is equipped with bypassvalve,when the filter is not changed in time, the bypass-valve can open automatically to keep the system operate normally.


Test standard:

 ISO 2941  Filter fracture resistance test and verify

ISO 2943  Filter structure integrity test

ISO 2943  Filter compatibility test and verify

H21004 H 003   Filter model
Material   Glass fiber Forms  Pleated filter Application  Oil impurities
Scope of use Filter  Suitable object Lube  Type  hepa
Brand  Nesia  Working temp 80-230( Working max pressure 0.35(MPa)
Filter precision  1-100 Diameter 95(mm)

    Flow  120
Medium  General hydraulic oil


Argo hydraulic filter number

AS08001 K3091852 P2061301 P2061301 P2071701 P2071702 P2072301 P2092301 P2093301 P2121712 P2121721P2122002 P3051000 P3051005 P3051051P3052000 P3052002 P3052005 P3052051P3052062 P3060701 P3061351 P3061352P3062051 P3062302 P3062311 P3071200P3071201 P3071301 P3072000 P3072001P3073051 P3073052 P3081701 P3081702P3082301 P3082312 P3083301 P3111700P3111710 P3112300 P3112310 P7061001S7061300 S7061305 S7061310 S7061315S2071710 S20720051 S2072010 S2072300S2092000 S2092001 S2092005 S2092015S2092020 S2092300 S2092301 S2092305S2093305 S2102308 S2102310 S2102301S2103305 S2103310 S2111300 S2111720S2121700 S2121705 S3050850 S3050851S3050855 S3051000 S3051005 S3052000S3052005 S3052300 S3071000 S3071200S3071205 S3072005 S3081700 S3101710S3101715 S3102305 S9062222 V2083303V2083306 V2083308 V2092003 V2092006V2092008 V2

(Not include all the part number, pls contact with us.)
