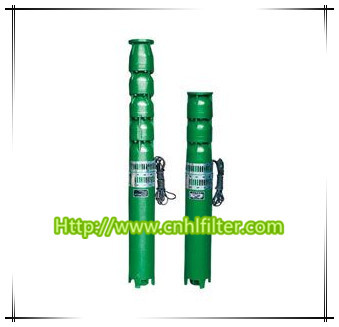

QJ Cast Iron Borehole Submersible Pump

QJ deep well submersible pump is suitable for the extraction of groundwater from wells. The pump can be used for water treatment application in rivers, reservoirs, canals. It also can be used for water supply for irrigation and people and stocks in deep m
Description
Description
>>> Product Overview
    QJ deep well submersible pump is suitable for the extraction of groundwater from wells. The pump can be used for water treatment application in rivers, reservoirs, canals. It also can be used for water supply for irrigation and people and stocks in deep mountains and plateaus as well as water drainage in cities, factories, railways, mines and construction sites.

>>>Features
1. The pump is close coupled with the electric motor. It runs in the water, which is safe and reliable.
2. There is no special requirement for well pipes and lifting pipes (i.e.: it can run in steel tube well, lime well and soil well. if the pressure permitted, steel, rubber, plastic pipe can be used as lifting pipes).
3. Installation, running and maintenance is convenient and simple. It is less space demand, so there is no need to build a pump station.
4. Simple structure, less material demand.


>>>Working Conditions
1. Flow range: 3.2~500 m³/h
2. Head range: 8~588 m
3. Power rnage: 3~75 KW
4. Medium temperature: ≤20 °C
5. PH range: 6.5~8.5

>>> Model Meaning
200QJ32-60/4

200: Engine Base Diameter (mm)
QJ: Submersible Deep Well Pump
32: Rated Flow (m³/h)
60: Rated Head
4: Stage
