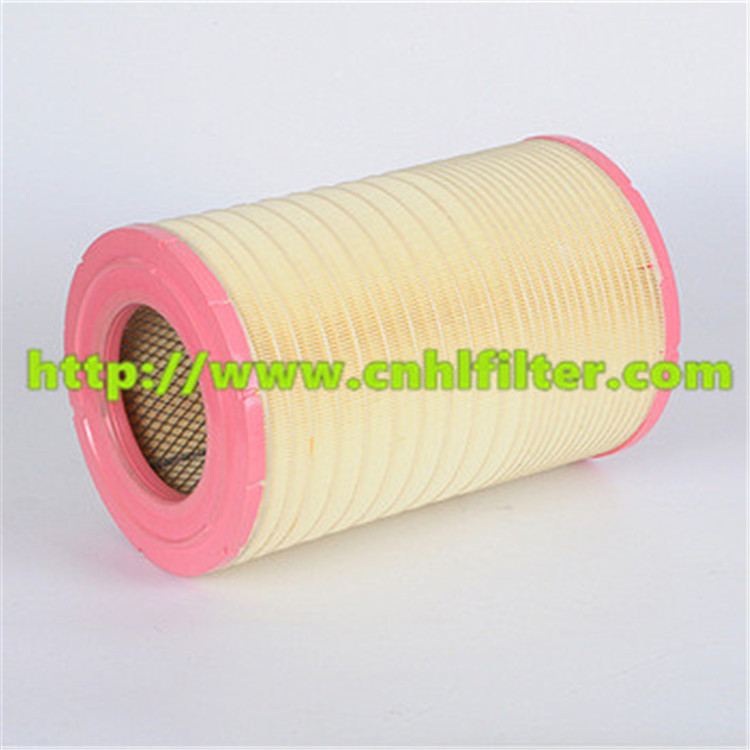

Gas turbine dust collector air filter element P191177 P191178

Item No.: P191177 P191178
Efficiency:99.5%, 99.5%  Construction:  Cartridge Filter  Medium Material:  Synthetic Fiber  Porosity:  0.5um  Place of Origin:Hebei, China (Mainland)
Description
Description
Quick Details
Efficiency:99.5%, 99.5%  Construction:  Cartridge Filter  Medium Material:   Synthetic Fiber  Porosity:  0.5um  Place of Origin:Hebei, China (Mainland)
Dimension(L*W*H):  324mm*660mm  Weight:  4KG  Certification:  ISO9001
Warranty: 1 Year  Color:  White/Blue  Type:  Gas Turbine Inlet Air Filter
Media:  Cellulose  Size: 2 μ   Life:  1~2 Years
HL  Industrial Donaldson Filters Cartridge P191177 and P191178
Supply  Ability  2000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Inner packing-Poly bags /Outer packing-Export cartons
Port Tianjin   Lead Time : One Week
Product Introduction
HL High Quality Industrial Donaldson Filters Cartridge P191177 and P191178 :
Suitable for the filtration of fine dust type in gas turbines, compressors, shot blast, tobacco, pulverized coal ash and floating dust collection;Widest applications, dry and granular shaped particulate Metal working Shot Blasting Mining industry Chemical Gas turbine
Features:
(1) Imported cellulose fiber or synthetic fiber for base
media (80%cellulose and 20%polyester).
(2) Excellent filter efficiency.
(3) Wide pleat spacing, great filter surface.
(4) Electrochemical plate top and bottom, no rust.
(5) Perforated zinc galvanized metal inner core, allows good airflow.
(6) Specialty chlorine rubber gasket to ensure airtight sealing.
(7) Applicable temperature: 65°C.
Specification:
Model O.D I.D Length Filtration surface(m2)
SFF/Z3266 Φ324mm Φ213mm 660mm 21m2
SFF/Z3566 Φ352mm Φ241mm 660mm 23m2
SFF/Z3275 Φ324mm Φ213mm 750mm 26m2
SFF/Z3288 Φ324mm Φ213mm 880mm 27m2
SFF/Z3290 Φ324mm Φ213mm 915mm 28m2







Filter Material:
1. Base media: Polyester 20% Cellulose 80%
2. Operating efficiency: 99.9% on 1 micron
3. Washable: Several times
4. Maximum operating temperature: 200oF/93oC
5. Abrasion resistance: Excellent
6. Chemical tolerance: Excellent
7. Optional flame retardant media(FR): To order
Other composition:
1. Gasket: Neoprene rubber, good at absolute hermetic seal, improving the durability
and life.
2. Inside cage: Galvanized steel, to prevent corrosion.
3. Molded top: Available in a varitety of styles and sizes to fit a wide range of
Tubesheet Holes.
4. Molded bottom: Helps resist abrasive wear at the bottom of the elements.
Applications:
1. Description: Excellent performance on moist, hygroscopic, or agglomerative dust.
2 Marktets: Thermal spray, welding, mining, chemical processing, metal buffing, pharmaceutical,cement, woodworking and etc.
3. Dust types: Fumed silica, metallic fume, metallurgical powders, and etc.
4. Available for collectors: SFF/XLC, SFFK, Torit DFT
5. Substitute: Donaldson, Nodic, BHA
Notes:
1. Optional construction and dimensions are available on all cartridges.
2. Please contact us to make optimal filtration solutions of your applications.
