Desciption

Quick Details
Place of Origin: Shanghai, China (Mainland) Model Number: LW   Theory: Centrifugal Pump
Structure: Multistage Pump   Usage:   Water, Pipe Sewage Pumps Power: Electric, Motor
Standard or Nonstandard: Standard   Fuel: electricity   Pressure:   Low Pressure
Application: Sewage, Pipe Pumps   Sewage Water Pumps:   Submerged Pumps
Life Time: Over 8000hours   Advantages:   Low Noise   Advantage:   Small Size
Supply Ability:1000 Piece/Pie ces per Month
Packaging Details Standard export wooden package or following customers' requirements
Port Tianjin /Shanghai
Lead Time : Generally within 30 days, depends on the quantity of the order
Specifications

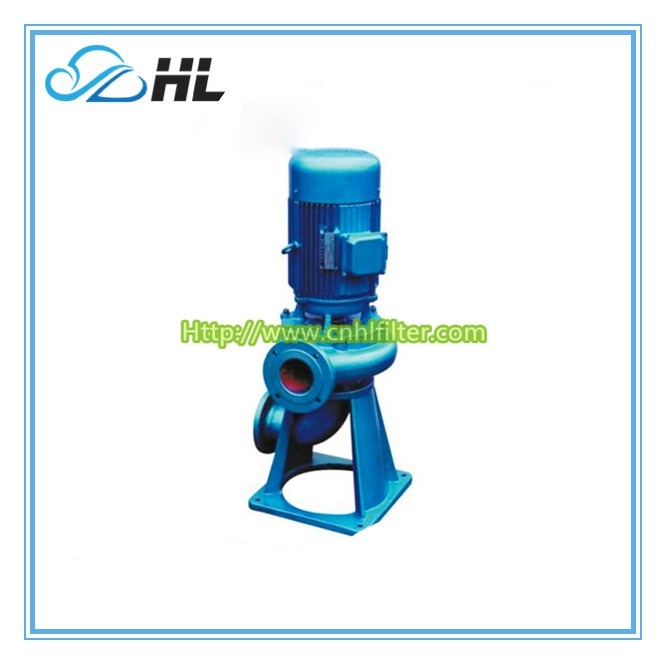

LW Submersible Centrifugal Non-clogged Pipe Sewage Pumps
1) Non-Clogged pipe pump
2) Advanced,Automatic,Intelligent

LW Submersible Centrifugal Non-clogged Pipe Sewage Pumps

OVERVIEW:
LW submersible centrifugal non-clogged pipe pump is a newly developed pump, based on the combination of the advanced technology from abroad and domestic features, which is good at energy-saving, anti-winding, no-clog, automatic installation and automatic control. This pump is excellent in transporting water with solid-particles and long fiber contained.

This pump has introduced special impeller structure and neo mechanical seals, to make it more efficient in delivering solid particles and long fiber contained water. Compared with traditional impeller, the new impeller, with spiral-flow type or double-leaf type that has an excellent delivery capacity, together with suitable volute, can improve the performance of the pump, running smoothly without any vibration.

APPLICATION:

Sewage discharging of living plot

Sewage system of municipal works

Sewage system in factory and mine corporation

Waste water discharging of public facility

Unit to other water-discharging system

FEATURES:
1.The impeller adopts particular large channel structure, So the drain capacity has been improved greatly. It can effectively pass the solid grain whose diameter is about 50%of the pump caliber.
2.The balanced rotor part and the proper bearing arrangement have effectively balanced the redial and axial load of pump, so it ensures the unit to run long and steadily with little vibration and low noise.
3.This type pump can adopt different installation forms according to the consumer’s requirements: single-pipe or double-pipe.
4.Mechanical seal adopts the latest material and is made with extra care. So its life is over 8000 hours.
5.The pump can be equipped with liquid-level automatic control cabinet according to the consumer’s requirements.
The whole machine can be started and stopped automatically according to the changes of level.It doesn’t need a special person to guard, so the application is quite convenient and it is easy to realize automatic management.
Note: Case of special temperature, pressure, high erosion etc, should be put forward in advance, so we can provide you more reliable models.

OPERATING CONDITIONS:

Operating Conditions
Capacity Scope	2—800m/h	Medium temperature	-15°C--+60°C
Head Scope	3—50m³	Medium consistency	≤1.3 x 10³kg/m³
Rated Speed	980—2900r/min	Medium PH Scope	5--9
System pressure	≤0.6MPa	Rotation	Clockwise rotation viewed from motor
