Place of Origin: China (Mainland) Model Number: XBD-HY Theory: Centrifugal Pump
Structure:Single-stage Pump Usage: Water Power: Electric
Standard or Nonstandard: Standard Fuel: Electricity
Pressure: Low Pressure Application: Fire
red colour: constant pressure pump
1000 Piece/Pieces per Month
Wooden Carton or following customers' requirements.
Lead Time :Generally within 30 days, depends on the quantity of the order

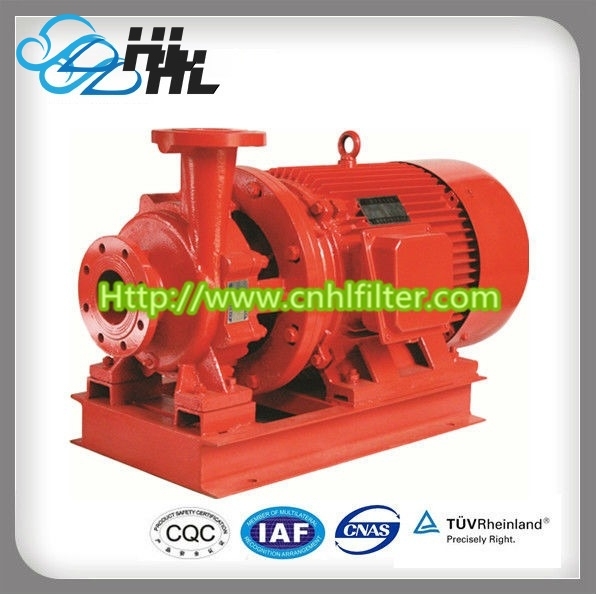

XBD-HY Brand new Horizontal Constant Pressure Fire Pumps
1. Flow :5-80L/S
3. Well performance

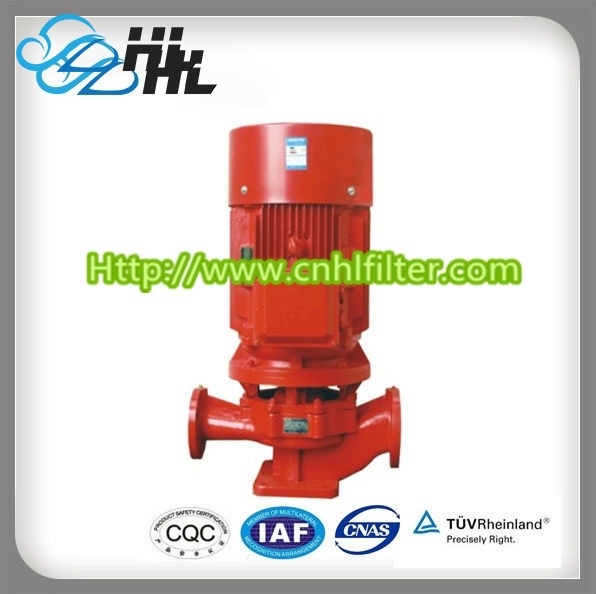

XBD-HY Brand new Horizontal Vertical Constant PressureFire Pumps
XBD-HY Constant Pressure Fire Pump is new, reliable, top quality special pump for firefighting, which has been developed by our technicians based on the market needs for water supply in high building fire system and living water system. Its performance, technique standards are in accordance with State Standard: GB6345-2006, The Performance Requirements and Test Method of Fire Pump.
XBD-HY has the feature of variable flow and constant pressure. That is in the full flow range, the head has little or no variation, which can be within the rate of 5%, when pump rises from zero flow to maximum flow. And the pressure stays in normal when in zero or least flow, and the water stays constant when in maximum flow, which can improve the efficiency of the fire-distinguisher and guarantee the safety and function of the fire equipments and firefighter. Combined the characteristics of the fire pump with our technical advantages, the pump is with open-type pump impeller, less axial force, to avoid rust and stuck, cast iron pump body and cover, impeller at clients choice several materials, such as ductile cast iron, bronze, stainless steel etc.
XBD-HY is mainly used for the water supply for fire system (Fire plug distinguisher, auto spray system, and water spraying system) in industry, civil building. Besides it can be used as water supply system for fire system or living water system in building, city, mines, boiler etc..
Rotating speed: 1500/3000mir
Flow range: 5-80L/S
Medium temperature: ≤80°C (fresh water)
