Quick Details
Place of Origin:
Shanghai, China (Mainland)
Model Number:
HLS
Theory:
Centrifugal Pump
Structure:
Single-stage PumpUsage:
Water
Power:
Electric
Standard or Nonstandard:
Standard
Fuel:
electric
Pressure:
High Pressure
Application:
water works
Centrifugal Water Pump
DN:
80-800mm
Max capacity:
max 3100L/S
color:
blue, red, black or others clients need
Head:
Max 200m
Operating pressure:
Max 2.5MPa
Operating temperature:
Max 120 degree cassias
shaft materials:
cast iron, ductile cast iron, cast steel, bronze, SS
Bearing:
SKF or NSK for options
Seal:
mechanical seal or packing seal
Packaging & Delivery
Selling Units:
Single item
Single package size:
76X78X70 cm
Single gross weight:
250.0 KG
Package Type:
dufferent models will be different weight and package size. Package way: polywood
Lead Time :
| Quantity(Acre) |
1 - 50 |
>50 |
| Est. Time(day) |
30 |
To be negotiated |
Product Description

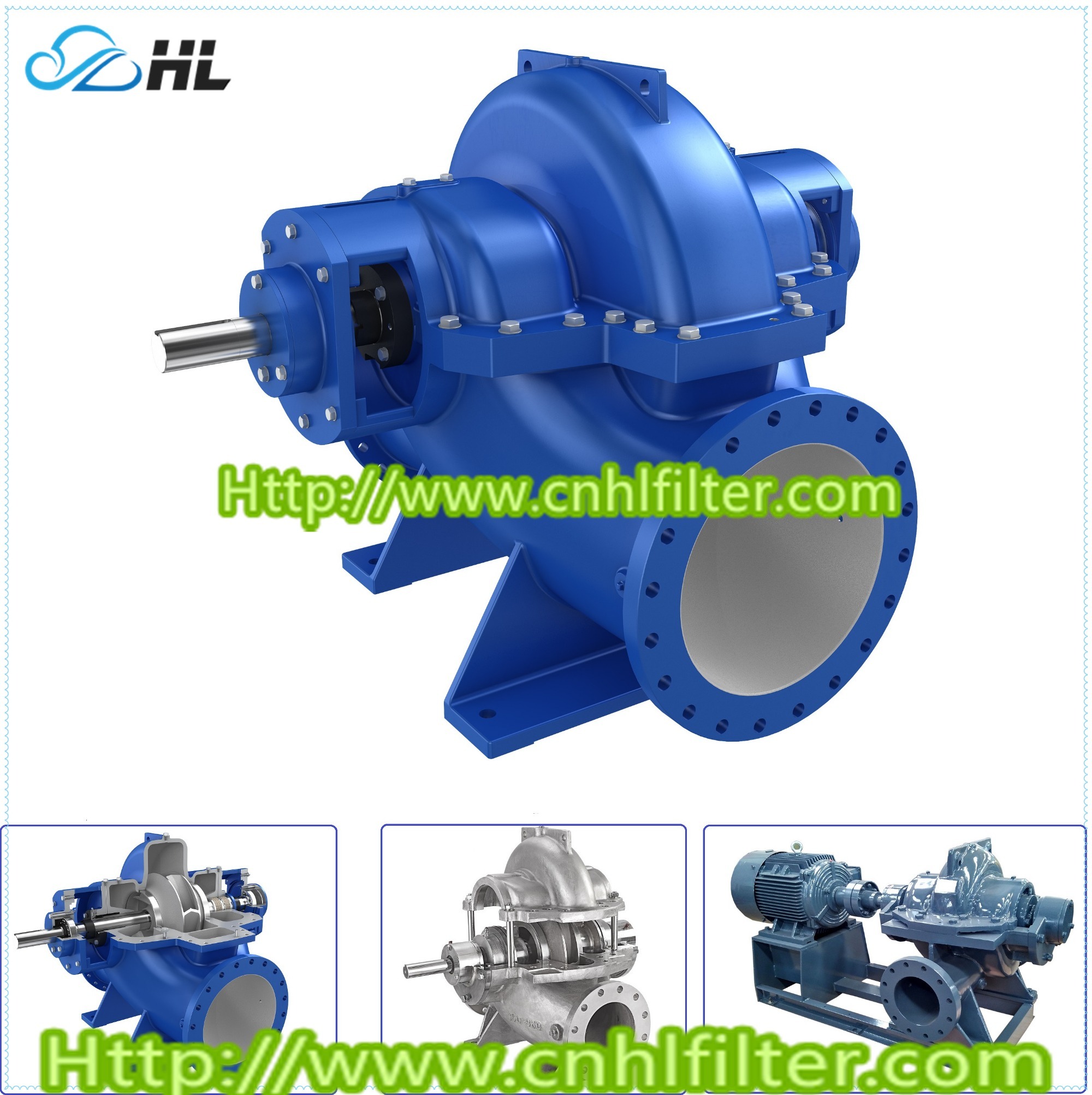

1. Axially pump casing: The casing is axially split, the inline suction and the discharge nozzles are in lower half casing, easy Maintenance
2. Dual Volute Casing: reduce radial forces, ensuring minimal shaft deflection and low bearing loads.
3. Between bearing design: Less shaft deflection due to the between-bearing design
4. Wear Rings: Easily replaceable casing wear rings, protect the pump casing from the abrasion of impeller.
5. Sealing Flexibility: Pump can be sealed by gland packing or wide range of mechanical seals
Materials cast iron, stainless steel, bronze, duplex stainless steel
General Product Details:
Materials: cast iron, stainless steel, bronze, duplex stainless steel for options
Color: blue, red, green, yellow, green, black, white, or others customers need.
Standard: GB-T5657, GB/T3216
DN: 80-800M
Capacity: max 3100L/S
Head: Max 200m
Pressure: Max 2.5Mpa
Materials of Main Parts:
| Parts Name |
Materials |
| I |
II |
III |
| Casing |
HT250 |
QT400-18 |
ZG230-450 |
| Shaft |
45 |
3Cr13 |
3CR13 |
| Impeller |
HT250 |
ZCuSn10Zn2 |
ZGICr18Ni12Mo2Ti |
| Sealing shaft sleeve |
45 |
3Cr13 |
Cr18Ni12Mo2Ti |
| Casing sealing ring |
HT250 |
ZCuSnPb5Zn5 |
ZGICr18Ni12Mo2Ti |

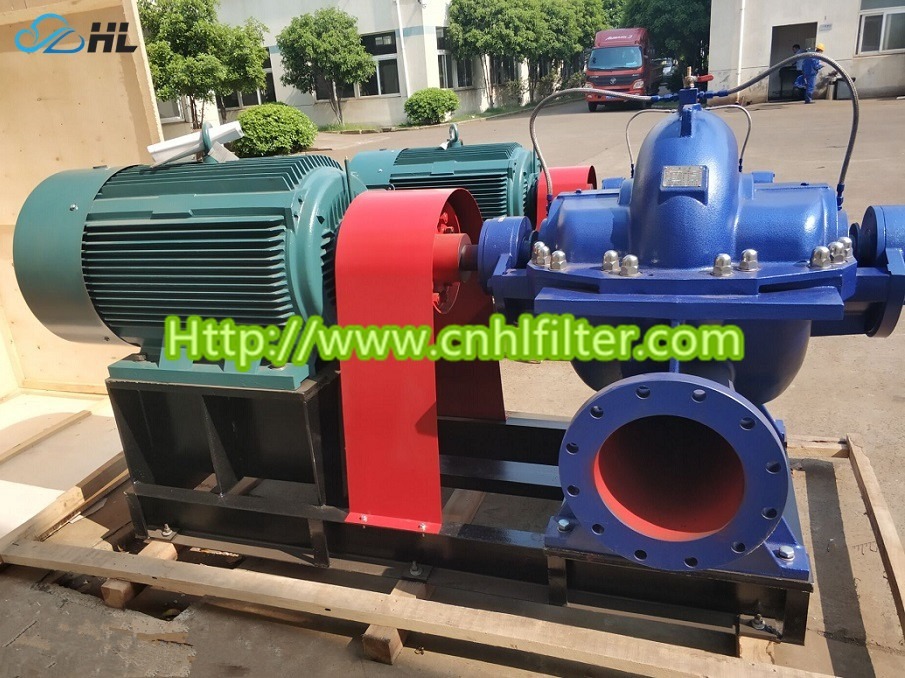

Our Factory daily working situation:

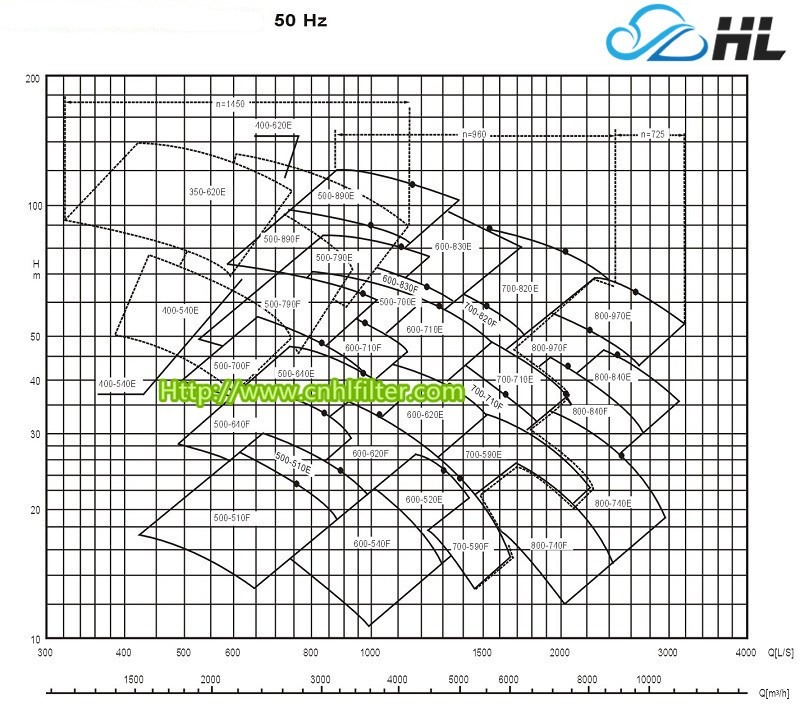

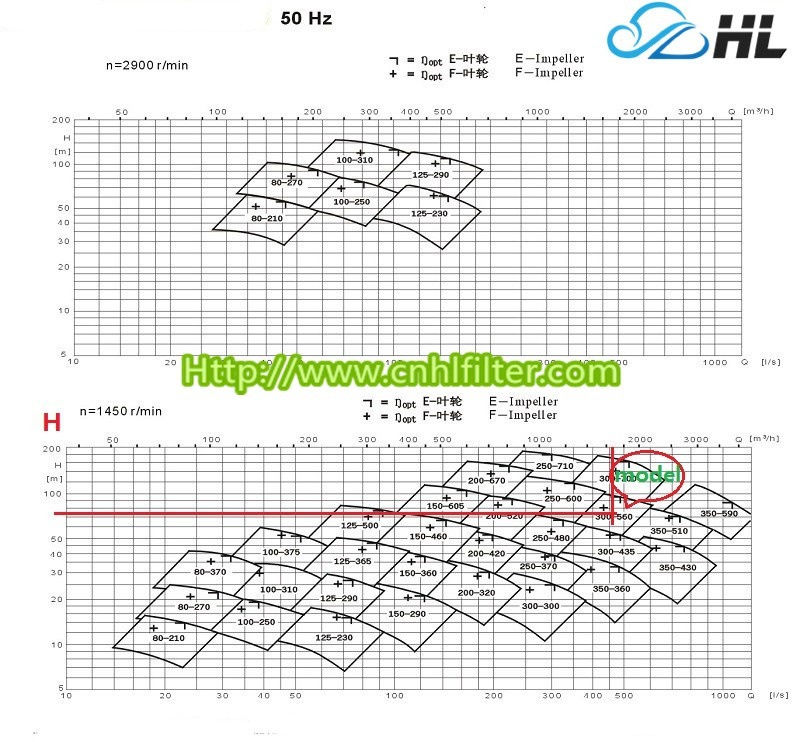

Parameters Of the products:
PS :it's only part serial number ,if you have any questioin,just contact us .
