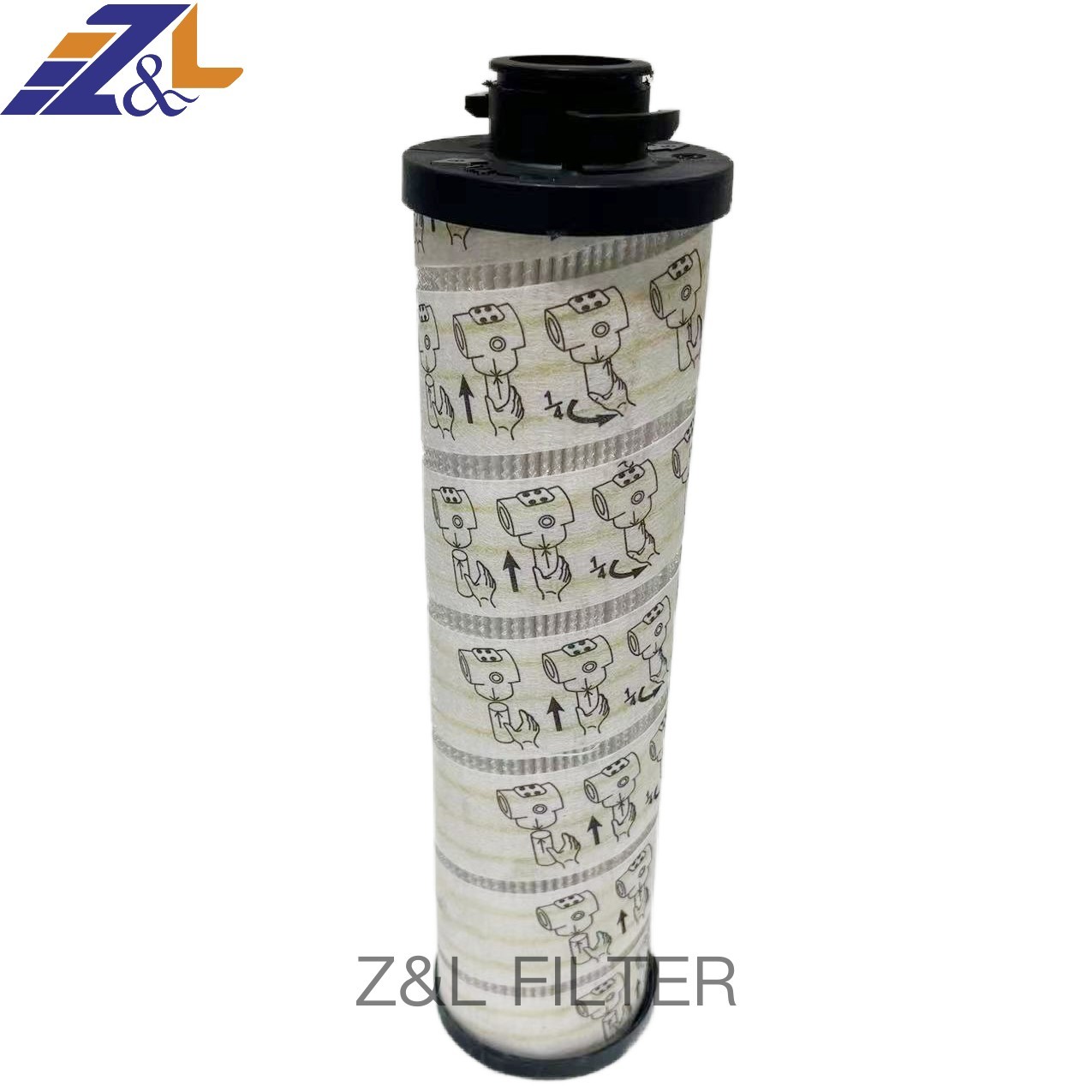

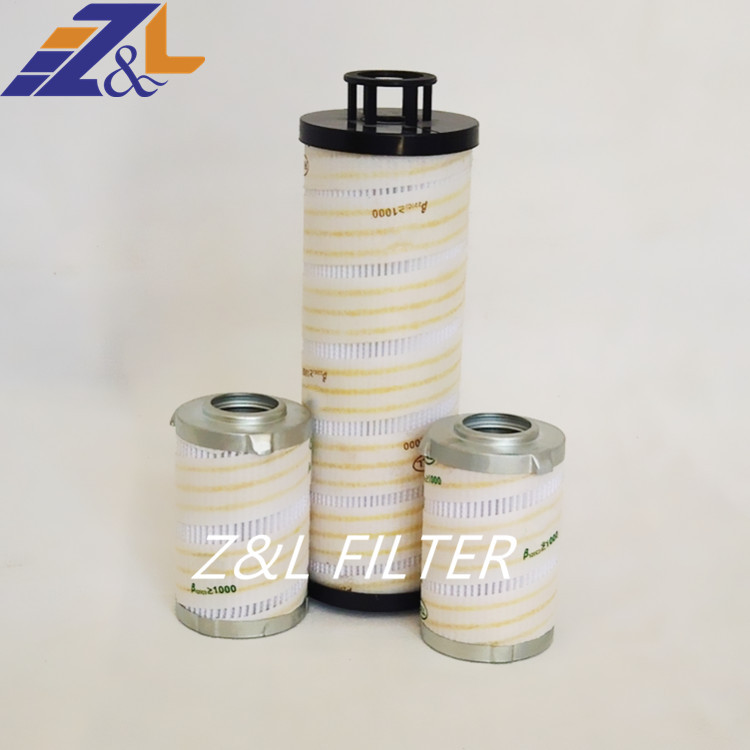

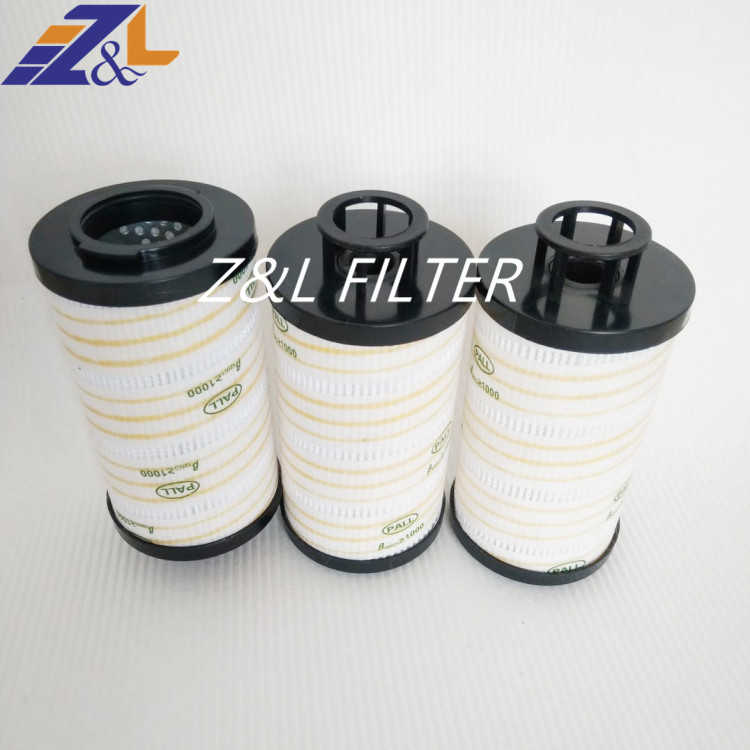

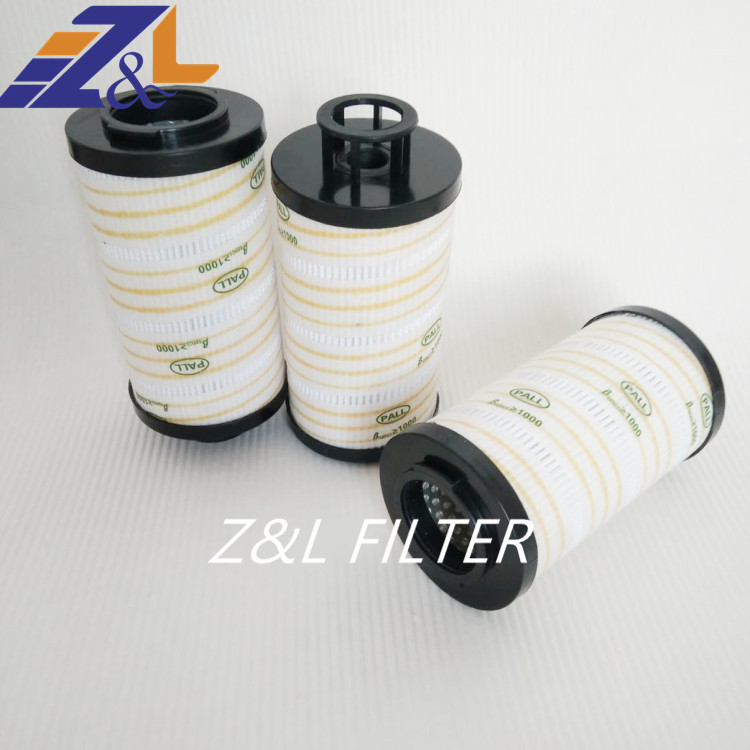

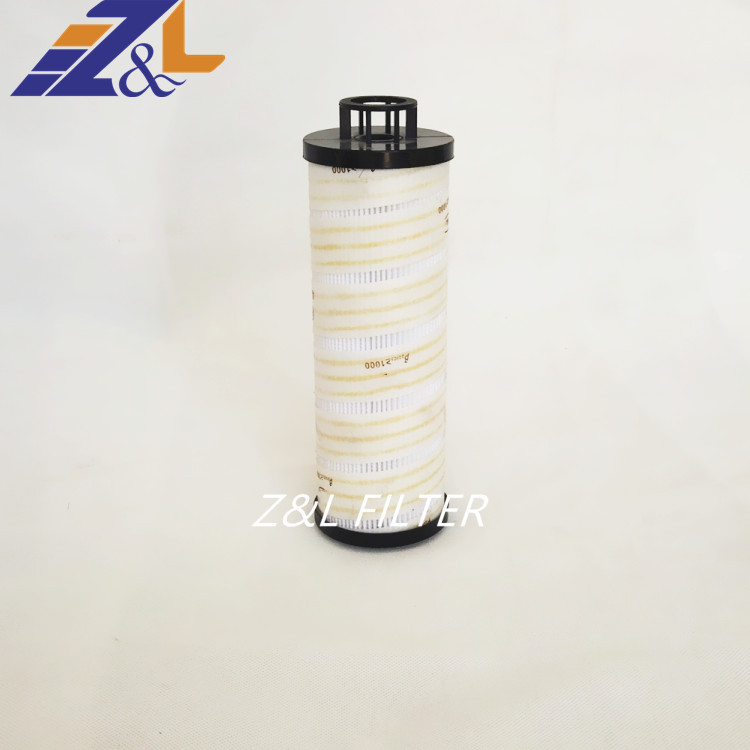

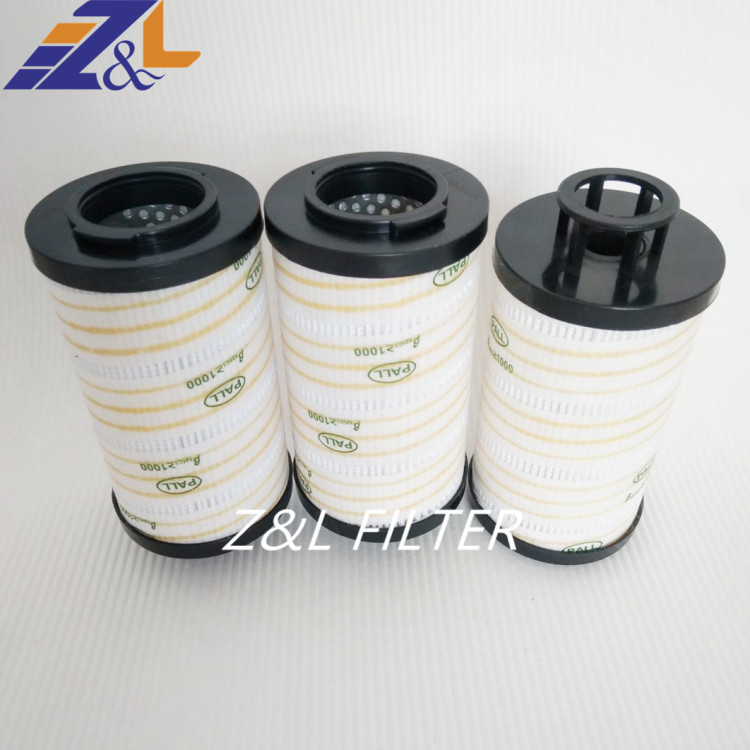

Z&l replacement oil filter cartridge hcg300fcn10h

No.hcg300fcn10h
  • Z&l replacement oil filter cartridge hcg300fcn10h
  • Z&l replacement oil filter cartridge hcg300fcn10h
  • Z&l replacement oil filter cartridge hcg300fcn10h
  • Z&l replacement oil filter cartridge hcg300fcn10h
  • Z&l replacement oil filter cartridge hcg300fcn10h
  • Z&l replacement oil filter cartridge hcg300fcn10h
  • Z&l replacement oil filter cartridge hcg300fcn10h
Desciption

Z&l replacement oil filter cartridge hcg300fcn10h
Product Ability
Element series:HCG300 series
Condition: New
Applicable Industries: hydraulic oil filtrationcoal milling machinery
Place of Origin: Hebei, China
Brand Name: Z&L FILTER
Product name: oil filter cartridge
Application: filtration
Filter Material: glassfiber, versalon , steel support ,ss caps/bottoms
Height 10 in
Outer diameter: 2.22 in
Filtration micron: 10 micron
Filtration efficiency : 98%
Working pressure (PSI) : 305
Low operating temperature (F) : -13
High operating temperature (F) : 248
Flow: from outside to inside
Material of gasket: nitrile rubber
Fluid type: HH/ HL/ HM/ HV/ HFD
Accuracy: 10 microns
 Product parameters

Produce Name hydraulic lube and oil filter cartridge
certification ISO9001
Filter material plastic caps and bottoms .ss mesh support.rubber ,glass fiber
Place of origin CHINA
OEM NO. HCG300FCN4Z
Brand name z&l filter
Fits The filtration effect and the service life of the post-filter element are greatly increased by adopting the perfect manufacturing technology of tapering wire winding structure.
Primary Filter Media Source Hv filter or Chinese glassfiber
dimensions Height:7.2 iin
Outer diameter: 3.2 in
Operating Efficiency OE HD 97% Initial Eff. on 10 micron

Z&l factory high efficiency glass fiber oil filter element hcg300 series ,HCG300FCN4Z
 Product introduction
Z&L Filter produceHCG300FCN4Z hydraulic oil filter products, the filter material is divided into domestic filter material and imported filter material, glass fiber filter paper adopts experimental grade high-quality filter paper, filter core support frame end cover are thickened and the surface after special chemical treatment, chemical stability bearing capacity is greatly improved

Product related series

HCG300FCN4Z HCG300FCS13Z HCG300FCG4Z
HCG300FCN8Z HCG300FCS4Z HCG300FCT8Z
HCG300FCN10Z HCG300FKS8H HCG300FCT10Z
HCG300FCN13Z HCG300FKS4H HCG300FCT13Z
HCG300FKN8H HCG300FKS4Z HCG300FKT8H
HCG300FKN4H HCG300FKS10Z HCG300FCS10Z
HCG300FKN10Z HCG300FKS13H HCG300FCS8Z
HCG300FKN10H HCG300FKS13Z HCG300FKS10H
HCG300FKN8Z HCG300FKN4Z HCG300FKS8Z
HCG200Fcs4z HCG200Fkn4z HCG200Fks4h
HCG200Fcs8z HCG200Fkn8h HCG200Fct4z
HCG200Fkd8h HCG200Fks8h HCG200Fct8z
HCG200Fkd8z HCG200Fks8z HCG200Fcn8z
HCG200Fkn8z HCG200Fks4z HCG200Fcn4z

Related Supplying
Hydraulic oil filters
Dseries:0030D series、 0035D series、 0055Dseries、0060Dseries、0075Dseries、0095Dseries、0110Dseries、0140Dseries、0160Dseries、0240Dseries、0280Dseries、0330Dseries、0500Dseries、0660Dseries、0990Dseries、
RNseries:0040RNseries 、0063RNseries、0100RNseries、0160RNseries、0250RNseries、0400RNseries、0630R Nseries、0400DNseries
R series:0030Rseries、0060Rseries、0110Rseries、0160Rseries、0240Rseries、0330Rseries、0660Rseries、0850Rseries、0950Rseries、1300Rseries、1320Rseries、1700Rseries、26007Rseries
Air filters ,oil and air seaprators
Optional/alternative/replacement Donald air filters
HC2208 SERIES,HC2206,HC2207,HC2238,HC2296,HC2286,HC2216 ,HC8300,HC9100,HC2217,HC2238,HC2618,HC2225 Series
Thermal power and nuclear power: steam turbine, boiler lubrication system, speed control system, fan and dust removal system purification.
Machinery processing equipment: paper machinery, mining machinery and large precision machinery system of medium purification
Product advantages
High resistance to variable operating pressures and flow rates contribute to one of the highest dirt-holding capacities and filtration efficiencies on the market
Filters contain more pleats and surface area than many competitors
Consistent filter efficiency, even at high differential pressure
Exceptional value and price-performance ration
Improved system reliability
Decreased number of maintenance operations
Lower maintenance costs
Extended filter element life
Customized solutions for specific filtration challenges
 Product application
Our Service:
Service Provide:
OEM ODM & OBM service, printing or logo information is acceptable.

Quality Guarantee:
All products have to pass strict inspection before they go out. If any problems caused by the product itself,
we will supply you the new replaced ones ASAP.


After-sales Service:
Any problems caused by using our products:

1) Keep the problem products and timely contact with us for better feedbacks.

2) Please do not damage problem products, if necessary, Send the
    products and the attached oil and the coolant sample together to us for better analyzing

3) Attached with repair document, parts list, labor costs and any other materials which
    can support a claim for compensation.
