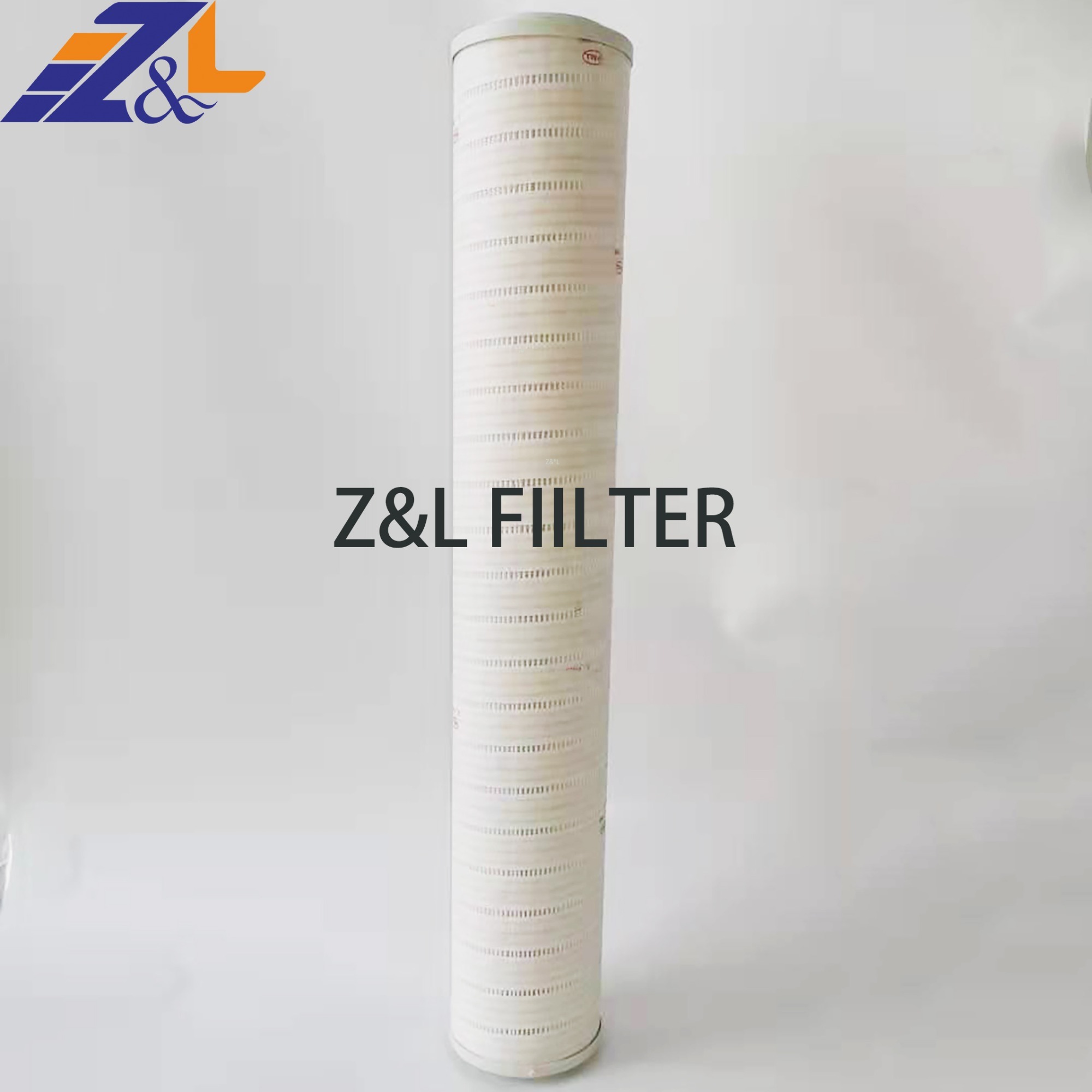

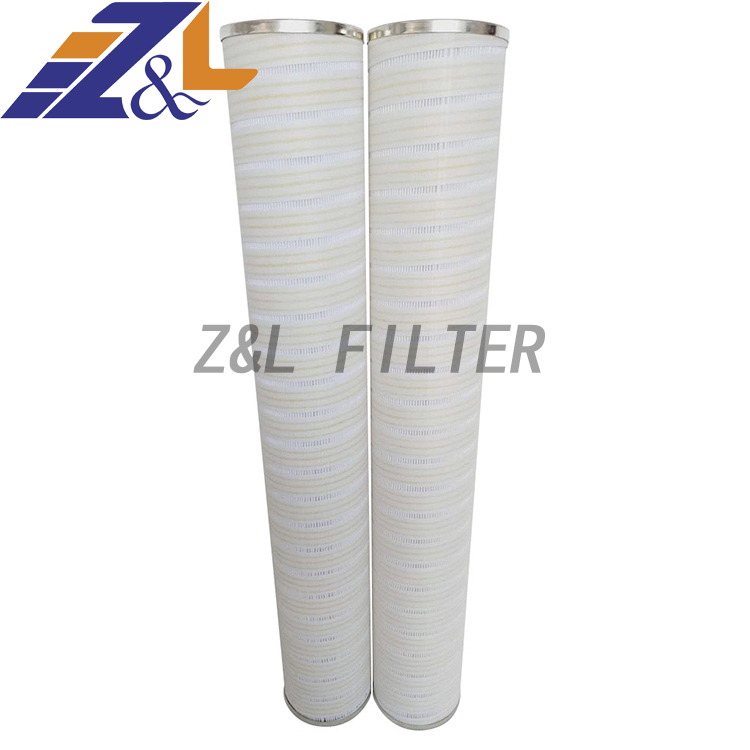

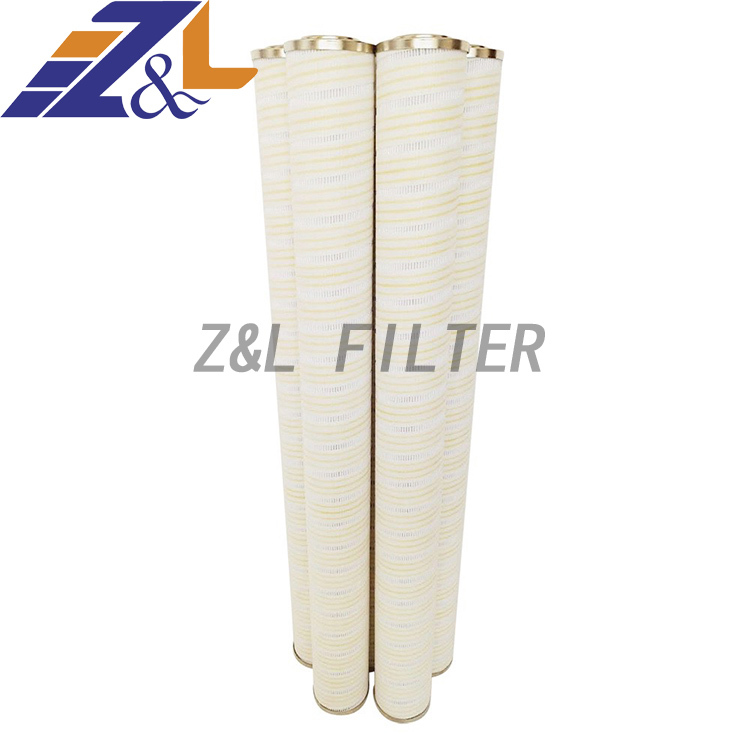

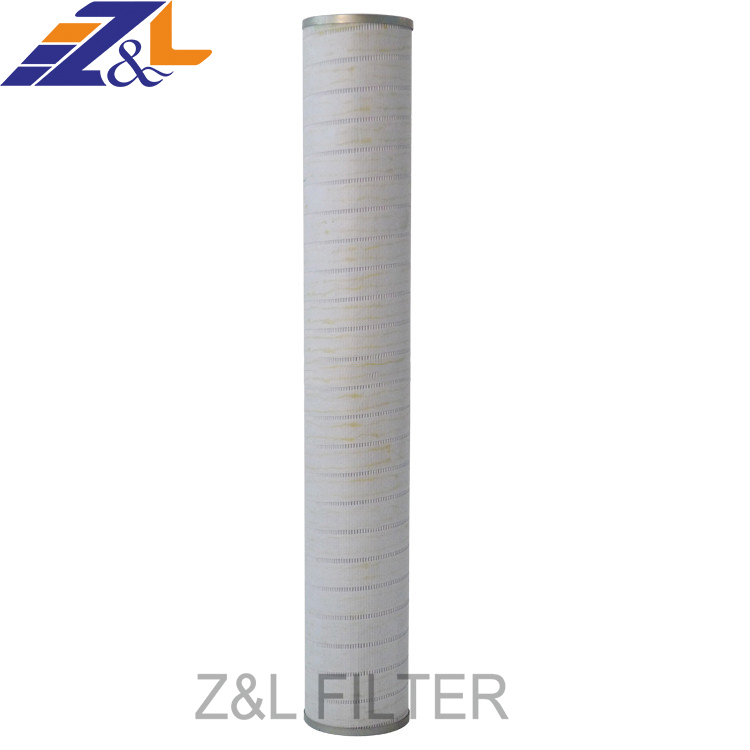

oil filter cartridge HC8900 series, HC8900FCS26H

Description
Description

Z&L hydraulic lube and oil filtration  oil filter cartridge HC8900 series, HC8900FCS26H
Product Ability
Element series: hc8900  series
Condition: New
Applicable Industries: hydraulic oil filtrationcoal milling machinery
Place of Origin: Hebei, China
Brand Name: Z&L FILTER
Product name: hydraulic oil filter cartridge
Application: filtration
Filter Material: glass fiber , steel support ,ss caps/bottoms
Filtration micron: 10 micron
Filtration efficiency : 98%
Height:26.2 iin
Outer diameter: 4.2 in
Working pressure (PSI) : 305
Low operating temperature (F) : -13
High operating temperature (F) : 50
Flow: from outside to inside
Material of gasket: nitrile rubber
Fluid type: HH/ HL/ HM/ HV/ HFD
Accuracy: 10  microns
Product parameters

Produce Name hydraulic lube and oil filter cartridge
certification ISO9001
Filter material plastic caps and bottoms .ss mesh support.rubber ,glass fiber
Place of origin CHINA
OEM NO. HC8900FCS26H
Brand name z&l filter
Fits The filtration effect and the service life of the post-filter element are greatly increased by adopting the perfect manufacturing technology of tapering wire winding structure.
Primary Filter Media Source Hv filter or Chinese glassfiber
dimensions Height:26.2 iin
Outer diameter: 4.2 in
Operating Efficiency OE HD 97% Initial Eff. on 10 micron

Z&L hydraulic lube and oil filtration  oil filter cartridge HC8900 series, HC8900FCS26H
 Product introduction
Z&L Filter produceHC8900FCS26H hydraulic oil filter products, the filter material is divided into domestic filter material and imported filter material, glass fiber filter paper adopts experimental grade high-quality filter paper, filter core support frame end cover are thickened and the surface after special chemical treatment, chemical stability bearing capacity is greatly improved

Product related series

HC8900FCN8H HC8999FCT8H HC8900FCP8H
HC8900FCN8Z HC8900FCT8Z HC8900FCP8Z
HC8900FCN13H HC8900FCT13H HC8900FCP13H
HC8900FCN13Z HC8900FCT13Z HC8900FCP13Z
HC8900FCN39H HC8900FCT16H HC8900FCP16H
HC8900FCN39Z HC8900FCT16Z HC8900FCP16Z
HC8900FCN39HX321 HC8900FCT26Z HC8900FCP39H
HC8900FCN39ZX321 HC8900FCT39H HC8900FCP39Z
HC8900FCN16H HC8900FCT26HX321 HC8900FCP35Y213
HC8900FCN16Z HC8900FCT39HX321 HC8900FCP39HX321
HC8900FCN26Z HC8900FCS39H HC8900FCP26H
HC8900FCN26H HC8900FCS39Z HC8900FCP16J
HC8900FCN39HY550 HC8900FCS16H HC890026HX321
HC8900FCN26Z HC8900FCS16Z HC8900FCP13J
HC8900FCN26HX321 HC8900FCS13H HC8900FCZ13H
HC8900FCN26HY550 HC8900FCS13Z HC8900FCZ13Z
HC8900FDN13H HC8900FCS26H HC8900FCZ16H
HC8900FDN13Z HC8900FCS26Z HC8900FCZ16Z
HC8900FDN39H HC8900FCS39ZX321 HC8900FCZ39Z
HC8900FDN39Z HC8900FCS26HX321 HC8900FCZ26H
HC8900FDN16H HC8900FCS8H HC8900FDS8H
HC8900FDN16Z HC8900FDT8H HC8900FDS8Z
HC8900FDN8H HC8900FDT8Z HC8900FDS16H
HC8900FDN8Z HC8900FDT16H HC8900FDS16Z
HC8900FDN26H HC8900FDT16Z HC8900FDS13H
HC8900FDN26Z HC8900FDT13H HC8900FDS13Z
HC8900FDP8H HC8900FDT13Z HC8900FDS26H
HC8900FDP8Z HC8900FDZ13H HC8900FDS26Z
HC8900FDP13H HC8900FDZ13Z HC8900FDS39H
HC8900FDP13Z HC8900FDZ16H HC8900FDS39Z
HC8900FDP16H HC8900FDZ16Z HC8900FDS16Z
HC8900FDP16Z HC8900FKN8H HC8900FKT8H
HC8900FDP39H HC8900FKN8Z HC8900FKT8Z
HC8900FDP39Z HC8900FKN13H HC8900FKT13H
HC8900FKP8H HC8900FKN13Z HC8900FKT13Z
HC8900FKP8Z HC8900FKN16H HC8900FKT16H
HC8900FKP13H HC8900FKN16Z HC8900FKT16Z
HC8900FKP13Z HC8900FKN26H HC8900FKT39Z
HC8900FKP16H HC8900FKN26Z HC8900FKT39H
HC8900FKP16Z HC8900FKN39H HC8900FKT26A
HC8900FKP39H HC8900FKN39Z HC8900FKS8H
HC8900FKP39Z HC8900FKZ13H HC8900FKS8Z
HC8900FKP35Y213 HC8900FKZ13Z HC8900FKS13H
HC8900FUT8H HC8900FKZ16H HC8900FKS13Z
HC8900FUT8Z HC8900FKZ16Z HC8900FKS16H
HC8900FUT13H HC8900FKZ8H HC8900FKS16Z
HC8900FUT13Z HC8900FUN8H HC8900FKS26H
HC8900FUT16H HC8900FUN8Z HC8900FKS26Z
HC8900FUT16Z HC8900FUN13H HC8900FKS39H
HC8900FUS8H HC8900FUN13Z HC8900FKS39Z
HC8900FUS8Z HC8900FUN16H HC8900FKS35HYZ13
HC8900FUS13H HC8900FUN16Z HC8900FUP13H
HC8900FUS13Z HC8900FUN26H HC8900FUP13Z
HC8900FUS16H HC8900FUN26Z HC8900FUP16H
HC8900FUS16Z HC8900FUN39H HC8900FUP16Z
HC8900FUS26H HC8900FUN39Z HC8900FUP39H
HC8900FUS26Z HC8900FUZ16H HC8900FUP39Z
HC8900FUS39H HC8900FUZ16Z HC8900FMN16Z
HC8900FUS39Z HC8900FUZ13H HC8900FMT8H
HC8900FMS13H HC8900FUZ13Z HC8900FMT13H
HC8900FMS13Z HC8900FMP13H HC8900FMT16H
HC8900FMS16Z HC8900FMP16H HC8900FAN39HY550
HC8900FAS39H HC8900FMP26ZYR11 HC8900FAN39Z
HC8900FAS26H HC8900FTS16Z HC890026HY550
HC8900FAT26H HC8900EOM26H HC8900FAN26H
HC8900FAT39H HC8900EOS26H HC8900FAN26Z
HC8900FAT16H HC8900EOJ16H HC8900FAN16H
HC8900EOT26H HC8900FTN16ZYP25 HC8900FAN39H
HC8900FTS16P HC8900FTN16Z HC8900FTT16P
HC8900FTS26P HC8900FAP13Z HC8900FTT26PX291
HC8900FTP16Z HC8900FCT16J HC8900FCS26H
Related Supplying
Hydraulic oil filters
Dseries:0030D series、 0035D series、 0055Dseries、0060Dseries、0075Dseries、0095Dseries、0110Dseries、0140Dseries、0160Dseries、0240Dseries、0280Dseries、0330Dseries、0500Dseries、0660Dseries、0990Dseries、
RNseries:0040RNseries 、0063RNseries、0100RNseries、0160RNseries、0250RNseries、0400RNseries、0630R Nseries、0400DNseries
R series:0030Rseries、0060Rseries、0110Rseries、0160Rseries、0240Rseries、0330Rseries、0660Rseries、0850Rseries、0950Rseries、1300Rseries、1320Rseries、1700Rseries、26007Rseries
Air filters ,oil and air seaprators
Optional/alternative/replacement Donald air filters
HC2208 SERIES,HC2206,HC2207,HC2238,HC2296,HC2286,HC2216 ,HC8300,HC9100,HC2217,HC2238,HC2618,HC2225 Series
Thermal power and nuclear power: steam turbine, boiler lubrication system, speed control system, fan and dust removal system purification.
Machinery processing equipment: paper machinery, mining machinery and large precision machinery system of medium purification
Product advantages
High resistance to variable operating pressures and flow rates contribute to one of the highest dirt-holding capacities and filtration efficiencies on the market
Filters contain more pleats and surface area than many competitors
Consistent filter efficiency, even at high differential pressure
Exceptional value and price-performance ration
Improved system reliability
Decreased number of maintenance operations
Lower maintenance costs
Extended filter element life
Customized solutions for specific filtration challenges
 Product application
Our Service:
Service Provide:
OEM ODM & OBM service, printing or logo information is acceptable.

Quality Guarantee:
All products have to pass strict inspection before they go out. If any problems caused by the product itself,
we will supply you the new replaced ones ASAP.


After-sales Service:
Any problems caused by using our products:

1) Keep the problem products and timely contact with us for better feedbacks.

2) Please do not damage problem products, if necessary, Send the
    products and the attached oil and the coolant sample together to us for better analyzing

3) Attached with repair document, parts list, labor costs and any other materials which
    can support a claim for compensation.
