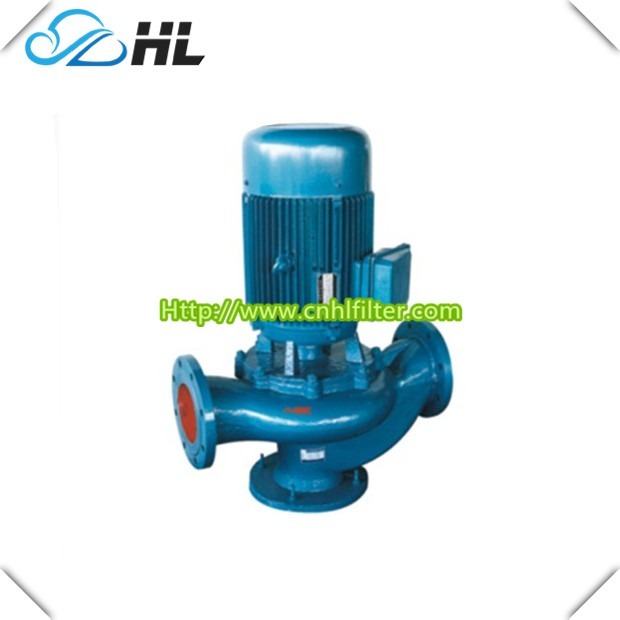

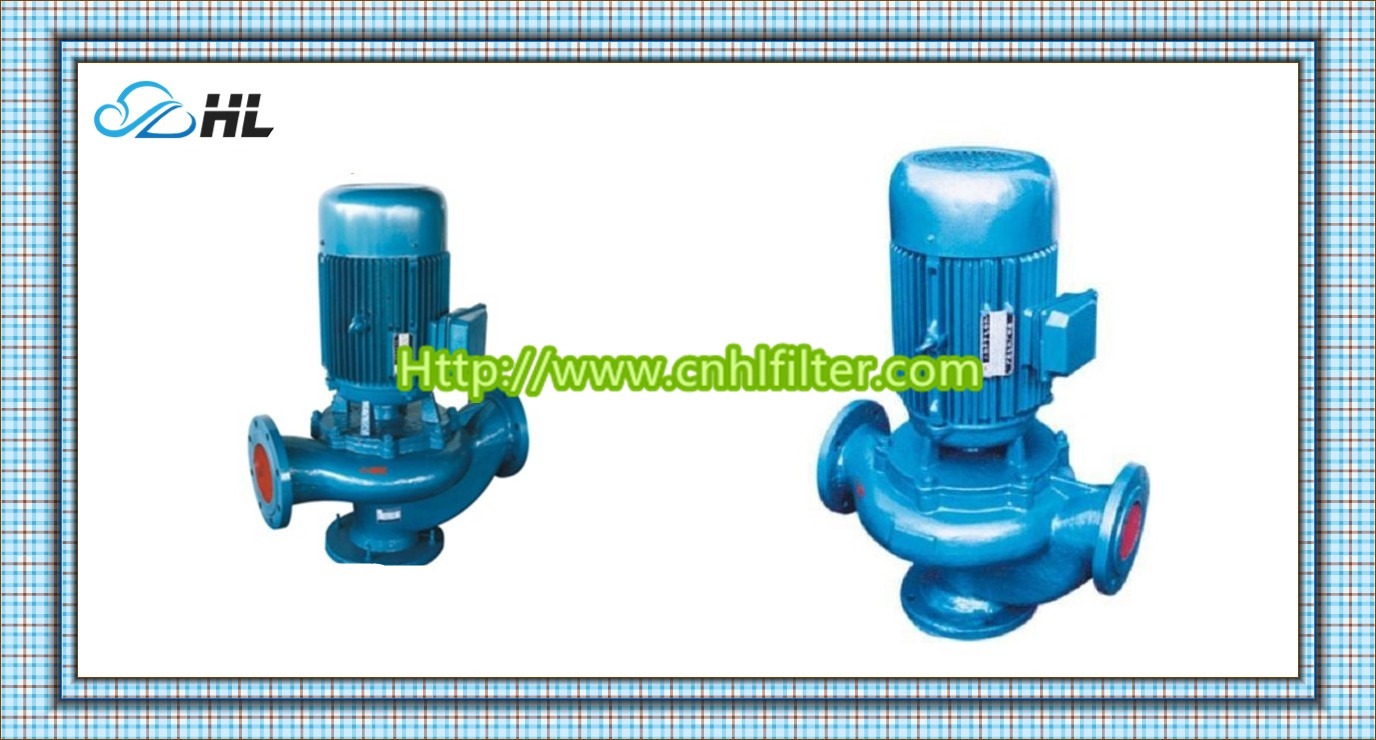

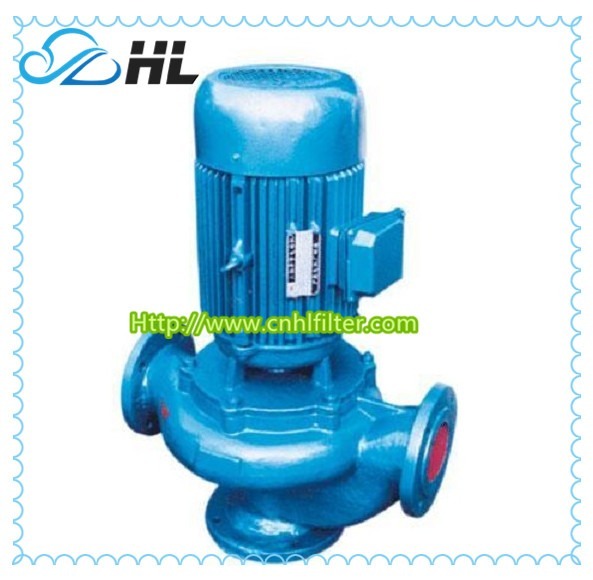

GW Made in China factory Inline Non Clogging Submersible Sewage Pump

No.GW
Place of Origin: Shanghai, China (Mainland) Model Number: GW Theory: Centrifugal Pump Structure: Multistage Pump Usage: Water, Pipe Water Pumps Power:Electric, Motor
  • GW Made in China factory Inline Non Clogging Submersible Sewage Pump
  • GW Made in China factory Inline Non Clogging Submersible Sewage Pump
  • GW Made in China factory Inline Non Clogging Submersible Sewage Pump
  • GW Made in China factory Inline Non Clogging Submersible Sewage Pump
  • GW Made in China factory Inline Non Clogging Submersible Sewage Pump
Desciption
Quick Details
Place of Origin:  Shanghai, China (Mainland)
Model Number: GW   Theory:  Centrifugal Pump  Structure:  Multistage Pump
Usage: Water, Pipe Water Pumps  Power:Electric, Motor
Fuel:electricity   Pressure:Low Pressure  Application:  Sewage, Pipe Pumps
Sewage Water Pumps:  Submerged Pumps  Life Time:Over 8000hours
Advantages: Low Noise  Capacity:  5-3000m3/h Head: 3-50m
Medium consistency:≤1200kg/m3   Description:  Pipe Pumps
Supply Ability: 1000 Piece/Pieces per Month
Packaging Details Standard export wooden package or following customers' requirements
Port  Shanghai Port
Lead Time :Generally within 30 days, depends on the quantity of the order
Specifications
GW Submersible Centrifugal Non-clogged Pipe Pumps
1) Non-Clogged pipe pump
2) Advanced,Automatic,Intelligent
3) Low noise


Product Description
GW Chinese Manufacture  Inline Non Clogging Submersible Sewage Pump
Product Overview

QW (WQ), YW, LW, GW non clogging sewage pump is a newly developed submersible pump, based on the combination of the advanced technology from abroad and domestic pump features. This model is energy-saving, anti-winding, non-clogging, automatic installation and automatic control. This pump is excellent in transporting sewage with solid-particles and long fibers.

This pump adopts special structure of the impellers and a new way of mechanical seals to make it more efficient in delivering sewage with solid particles and long fibers. Compared with the traditional impellers, the new ones (spiral-flow type or double-leaf type) have an excellent delivery capacity, which improves the performance of the pump. it runs more smoothly without any vibration.

Applications:
  • Sewage discharging of living plots
  • Sewage system of municipal works
  • Sewage system in factories and mines
  • Waste water discharging of public facilities
  • Connect to other water-discharging systems

Features:
  1. The impeller adopts particular large channel structure, so the drain capacity has been improved greatly, which can effectively let the solid grains and long fibers pass.
  2. The balanced rotor part and the proper bearing arrangement have effectively balanced the redial and axial load of pump, so it ensures that the pump runs for a longer life time and steadily with little vibrations and low noises.
  3. This pump can adopt different installation forms according to the consumer’s requirements: single-pipe or double-pipe.
  4. Mechanical seal adopts the latest materials, so its service life is over 8000 hours.
  5. It fixed with advanced heat sensor, which can protect the motor effectively.
  6. The pump can be equipped with liquid-level automatic control panel according to the customer’s requirements.
  7. The pump can be started and stopped automatically according to the changes of liquid level. It does not need a special worker to guard.
Note: special requirements like high temperature, high pressure, high erosion etc, please specify in advance.


Working Conditions:
  • Flow range: 2-800m3/h
  • Head range: 3-50m
  • Medium temperature: -15ºC~+60ºC
  • Medium viscosity: ≤1200kg/m3
  • Rated speed: 980-2900r/min
  • Medium PH range: 5-9
  • System pressure: ≤0.6MPa
  • Rotation: clockwise rotation viewed from the motor

Model Meaning:

40QW(WQ), YW, LW, GW, P 15-25-2.2
  • 40: Outlet Diameter (mm)
  • QW (WQ): Submersible
  • YW: Bearing Above Liquid Level
  • LW: Vertical
  • GW: In-line
  • P: ----Stainless Steel Sleeve (P)
  •     ----Explosion-proof(B)
  • 15: Flow (m3/h)
  • 25: Head (m)
  • 2.2: Motor Power (kW)

Specification List:

Download
Model Diameter
(mm)
Capacity
Q
(m3/h)
Head
(m)
Power
(kW)
Speed
(r/min)
Eff.
(%)
25-8-22-1.1 25 8 22 1.1 2825 38.5
32-12-15-0.75 32 12 15 0.75 2825 40
40-15-15-1.5 40 15 15 1.5 2840 45.1
40-15-25-2.2 40 15 25 2.2 2840 48
50-20-7-0.75 50 20 7 0.75 2840 54
50-10-10-0.75 50 10 10 0.75 2840 56
50-20-15-1.5 50 20 15 1.5 2840 55
50-15-25-2.2 50 15 25 2.2 2840 56
50-18-30-3 50 18 30 3 2880 58
50-25-32-5.5 50 25 32 5.5 2900 53
50-20-40-7.5 50 20 40 7.5 2900 55
65-25-15-2.2 50 25 15 2.2 2840 52
65-37-13-3 65 37 13 3 2880 55
65-25-30-4 65 25 30 4 2890 58
65-30-40-7.5 65 30 40 7.5 2900 56
65-35-50-11 65 35 50 11 2930 60
65-35-60-15 65 35 60 15 2930 63
80-40-7-2.2 80 40 7 2.2 2900 52
80-43-13-3 80 43 13 3 2880 50
80-40-15-4 80 40 15 4 2890 57
80-65-25-7.5 80 65 25 7.5 2900 56
100-80-10-4 100 80 10 4 1450 62
100-110-10-5.5 100 110 10 5.5 1450 66
100-100-15-7.5 100 100 15 7.5 1450 67
100-85-20-7.5 100 85 20 7.5 2900 68
100-100-25-11 100 100 25 11 2900 65
100-100-30-15 100 100 30 15 2900 66
100-100-35-18.5 100 100 35 18.5 2900 65
125-130-15-11 125 130 15 11 1450 62
125-130-20-15 125 130 20 15 1450 63
150-145-9-7.5 150 145 9 7.5 1450 63
150-180-15-15 150 180 15 15 1450 65
150-180-20-18.5 150 180 20 18.5 1450 75
150-180-25-22 150 180 25 22 1450 76
150-130-30-22 150 130 30 22 1450 75
150-180-30-30 150 180 30 30 1450 73
150-200-30-37 150 200 30 37 1480 70
200-300-7-11 200 300 7 11 1450 73
200-250-11-15 200 250 11 15 1450 74
200-400-10-22 200 400 10 22 1470 76
200-400-13-30 200 400 13 30 1470 73
200-250-15-18.5 200 250 15 18.5 1470 72
200-300-15-22 200 300 15 22 1470 73
200-250-22-30 200 250 22 30 1470 71
200-350-25-37 200 350 25 37 1450 75
200-400-30-55 200 400 30 55 1480 70
250-600-9-30 250 600 9 30 980 74
250-600-12-37 250 600 12 37 1480 78
250-600-15-45 250 600 15 45 1480 75
250-600-20-55 250 600 20 55 1480 73
250-600-25-75 250 600 25 75 1480 73
300-800-12-45 300 800 12 45 980 76
300-500-15-45 300 500 15 45 980 70
300-800-15-55 300 800 15 55 980 73
300-600-20-55 300 600 20 55 980 75
300-800-20-75 300 800 20 75 980 78
300-950-20-90 300 950 20 90 980 80
300-1000-25-110 300 1000 25 110 980 82
350-1100-10-55 350 1100 10 55 980 84.5
350-1500-15-90 350 1500 15 90 980 82.5
350-1200-18-90 350 1200 18 90 980 83.1
350-110-28-132 350 1100 28 132 740 83.2
350-1000-36-160 350 1000 36 160 740 78.5
400-1500-10-75 400 1500 10 75 980 82.1
400-2000-15-132 400 2000 15 132 740 85.5
400-1700-22-160 400 1700 22 160 740 82.1
400-1500-26-160 400 1500 26 160
