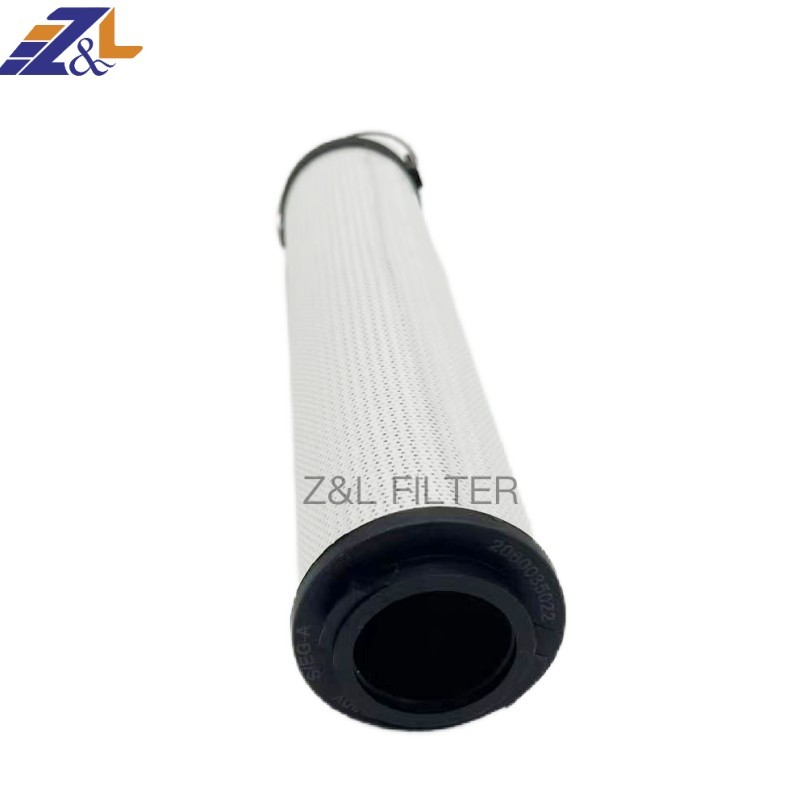

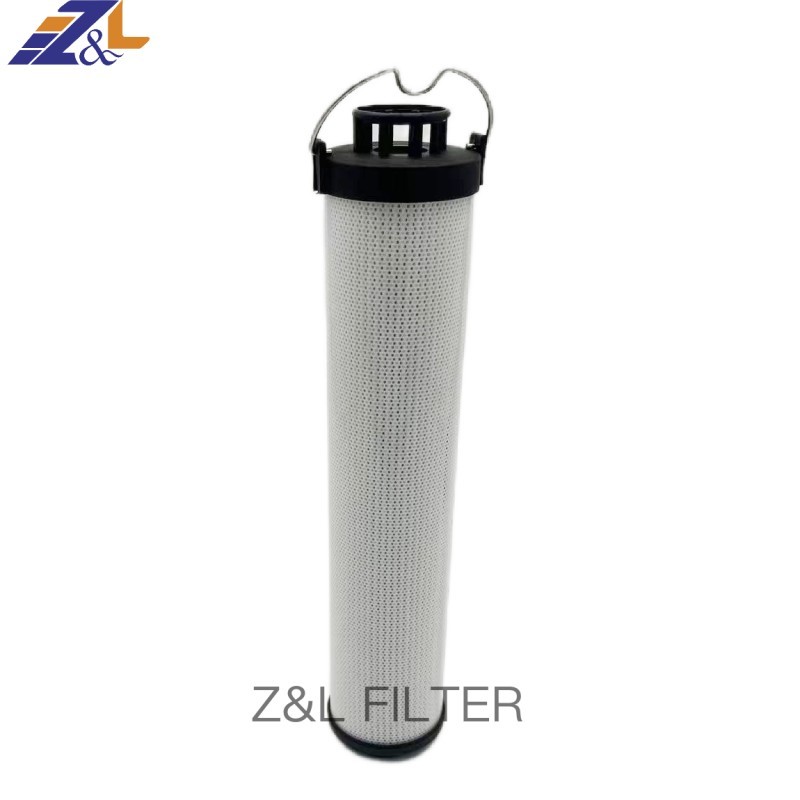

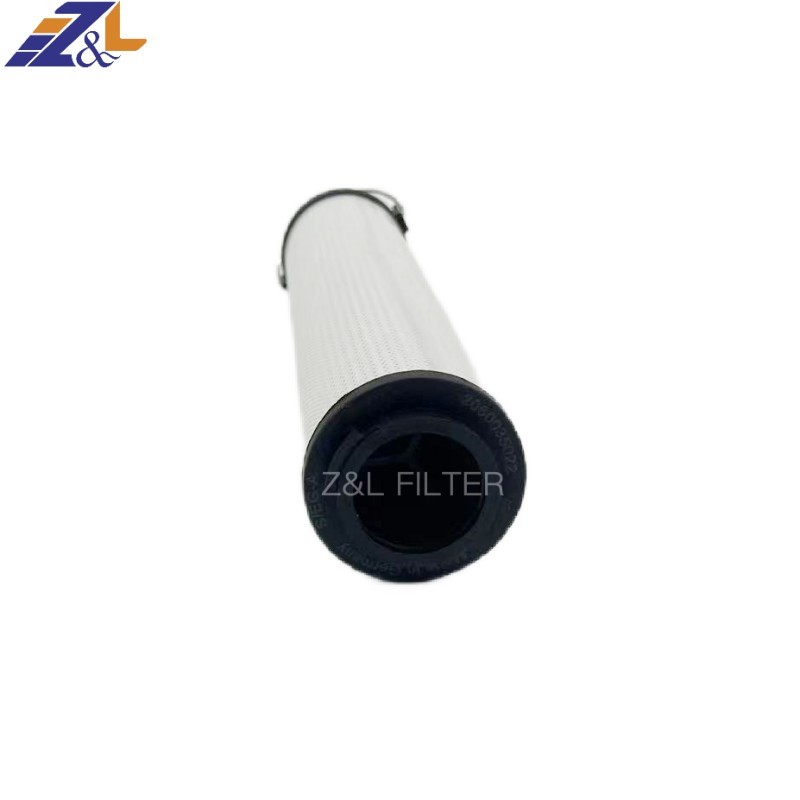

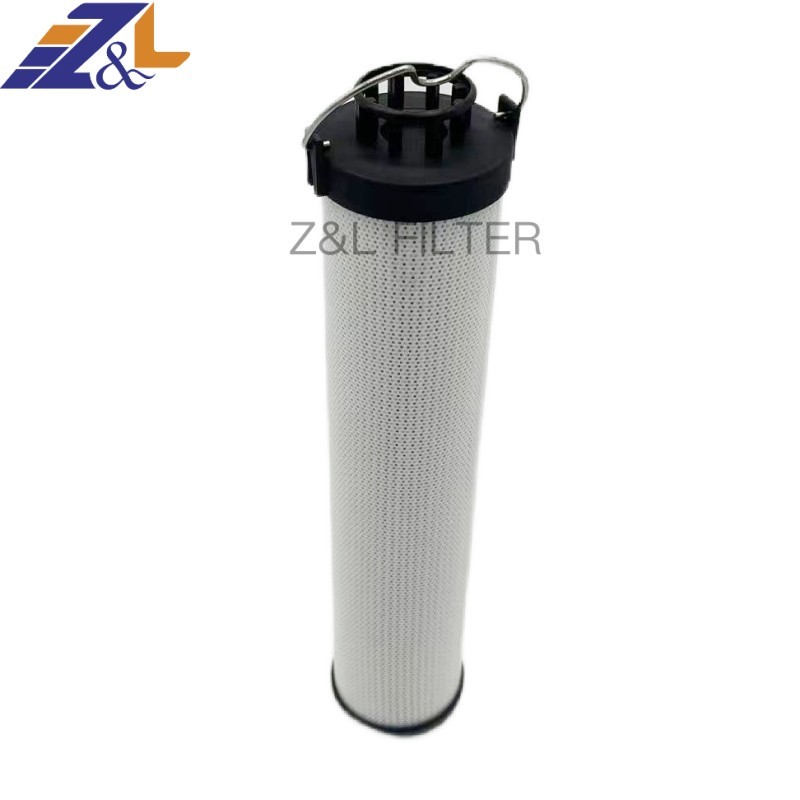

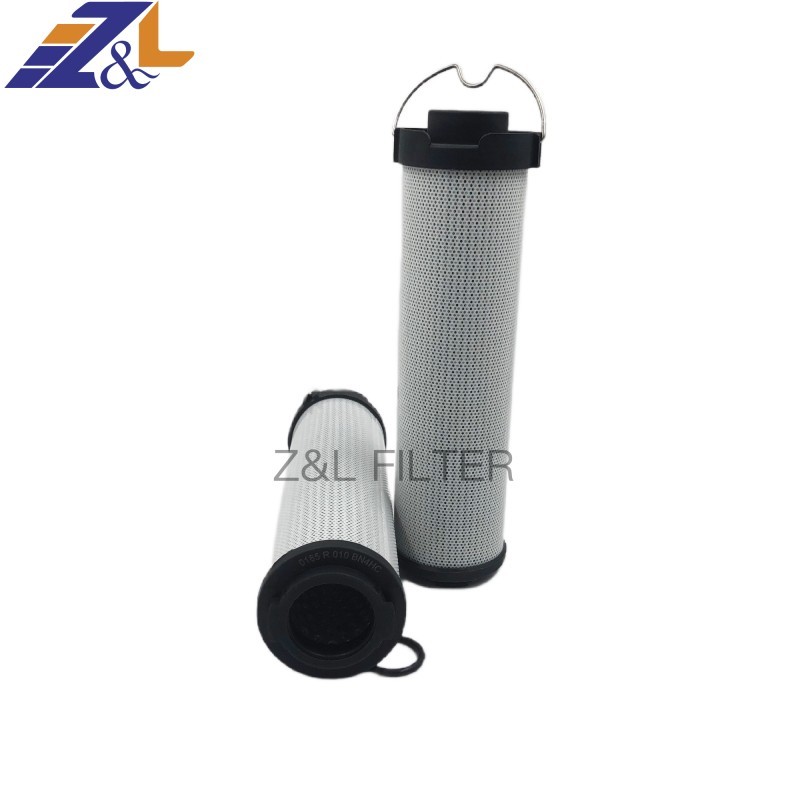

Z&L factory price Hydraulic Oil Cartridge Filter 0165r010bn4hc

Item No.: 0165r010bn4hc
Description
Description

Z&L factory price Hydraulic Oil Cartridge Filter 0165r010bn4hc

Product Ability
Element series:0165 series
Efficiency:99.99%
Construction:Cartridge Filter
Place of Origin:HEBEI. CHINA
Brand Name:Z&L FILTER
HEIGHT: 9.2 IN
OD:3.2IN
Weight 4KG:
Type:Pleated Cartridge hydraulic Filter Element
Machinery: Excavator
Material:HV Filter Paper, Metal Net
Installation Position:Hydraulic Systems
Certification:ISO2009:2015
Filtration micron: 10 micron
Filtration efficiency : 98%
Working pressure (PSI) : 305
Low operating temperature (F) : -13
High operating temperature (F) : 248
Flow: from outside to inside
Material of gasket: nitrile rubber
Fluid type: HH/ HL/ HM/ HV/ HFD
Accuracy: 10 microns
Product parameters

Produce Name hydraulic lube and oil filter cartridge
certification ISO9001
Filter material plastic caps and bottoms .ss mesh support.rubber ,glass fiber
Place of origin CHINA
OEM NO. 0165r010bn4h
Brand name z&l filter
Fits The filtration effect and the service life of the post-filter element are greatly increased by adopting the perfect manufacturing technology of tapering wire winding structure.
Primary Filter Media Source Hv filter or Chinese glassfiber
dimensions HEIGHT: 9.2 IN
OD:3.2IN
Operating Efficiency OE HD 97% Initial Eff. on 10 micron

Z&L factory price Hydraulic Oil Cartridge Filter 0165r010bn4hc

 Product introduction
Z&L Filter produces 0165r010bn4hc hydraulic oil filter products, the filter material is divided into domestic filter material and imported filter material, glass fiber filter paper adopts experimental grade high-quality filter paper, filter core support frame end cover are thickened and the surface after special chemical treatment, chemical stability bearing capacity is greatly improved

Similar type number list
P/N SIZE(mm)  P/N  SIZE(mm)
 HC8300FKS24H-YC11B  152* 598.5  01.NR.1000.3VG.10.BP  154* 400
 HC8300FKS30H-YC11  152* 751  01.NR1000.6VG.10.BV  154* 400
 HC8300FKS39H-YC11  152* 978  01NR.1000.32227.10VG.25G.25.BVS1  160* 502
 HC8300FKS16H  152* 427  01NL.400.10VG.HR.EP  79* 428
 HC9600FKN8H  78* 210  73.0135 H10XL / G40-A00-0-M  140* 989
 HC4754FKN13H  80* 331  65.1300H10XL / G40-000-B4-M  140* 482
 HC9020FKN8H  45* 209  65.2600H10XL / G40-000-B4-M  143* 921
 1300R010BN4HC / V-B4-KE50  143* 482  H1300 RN2010 / SONDER WK  143* 478
 2600R010BN4HC-B4-KE50  143* 921  H2600 RN 2010 / SONDER WK  143* 917
Related Supplying
Hydraulic oil filters
Dseries:0030D series、 0035D series、 0055Dseries、0060Dseries、0075Dseries、0095Dseries、0110Dseries、0140Dseries、0160Dseries、0240Dseries、0280Dseries、0330Dseries、0500Dseries、0660Dseries、0990Dseries、
RNseries:0040RNseries 、0063RNseries、0100RNseries、0160RNseries、0250RNseries、0400RNseries、0630R Nseries、0400DNseries
R series:0030Rseries、0060Rseries、0110Rseries、0160Rseries、0240Rseries、0330Rseries、0660Rseries、0850Rseries、0950Rseries、1300Rseries、1320Rseries、1700Rseries、26007Rseries
Air filters ,oil and air seaprators
Optional/alternative/replacement Donald air filters
HC2208 SERIES,HC2206,HC2207,HC2238,HC2296,HC2286,HC2216 ,HC8300,HC9100,HC2217,HC2238,HC2618,HC2225 Series
Thermal power and nuclear power: steam turbine, boiler lubrication system, speed control system, fan and dust removal system purification.
Machinery processing equipment: paper machinery, mining machinery and large precision machinery system of medium purification
Product advantages
High resistance to variable operating pressures and flow rates contribute to one of the highest dirt-holding capacities and filtration efficiencies on the market
Filters contain more pleats and surface area than many competitors
Consistent filter efficiency, even at high differential pressure
Exceptional value and price-performance ration
Improved system reliability
Decreased number of maintenance operations
Lower maintenance costs
Extended filter element life
Customized solutions for specific filtration challenges
