Description Review

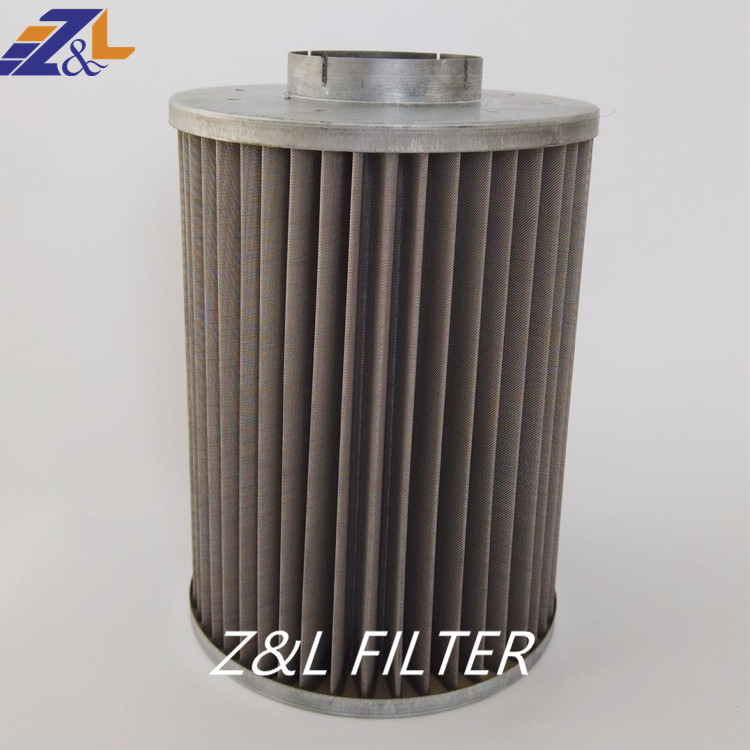

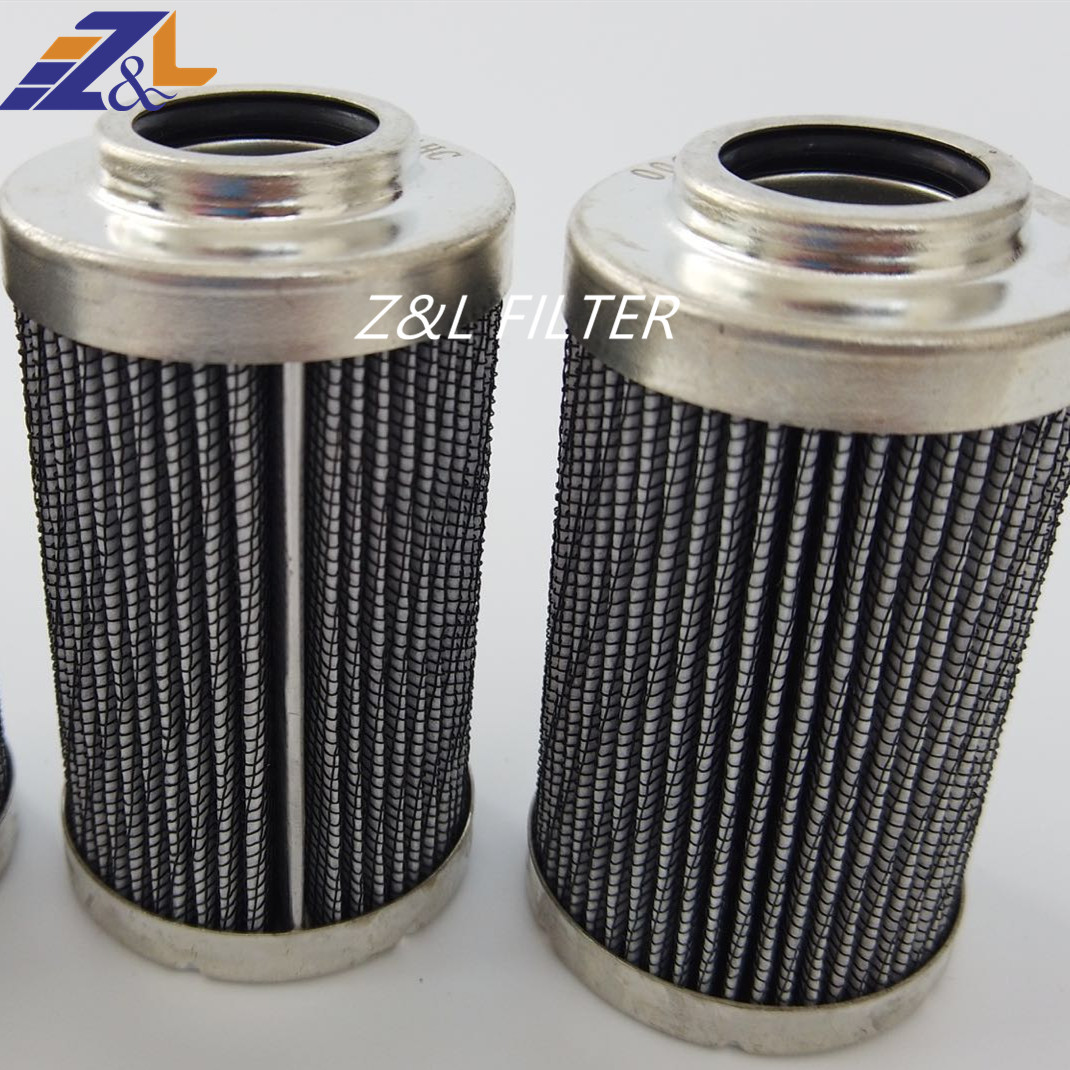

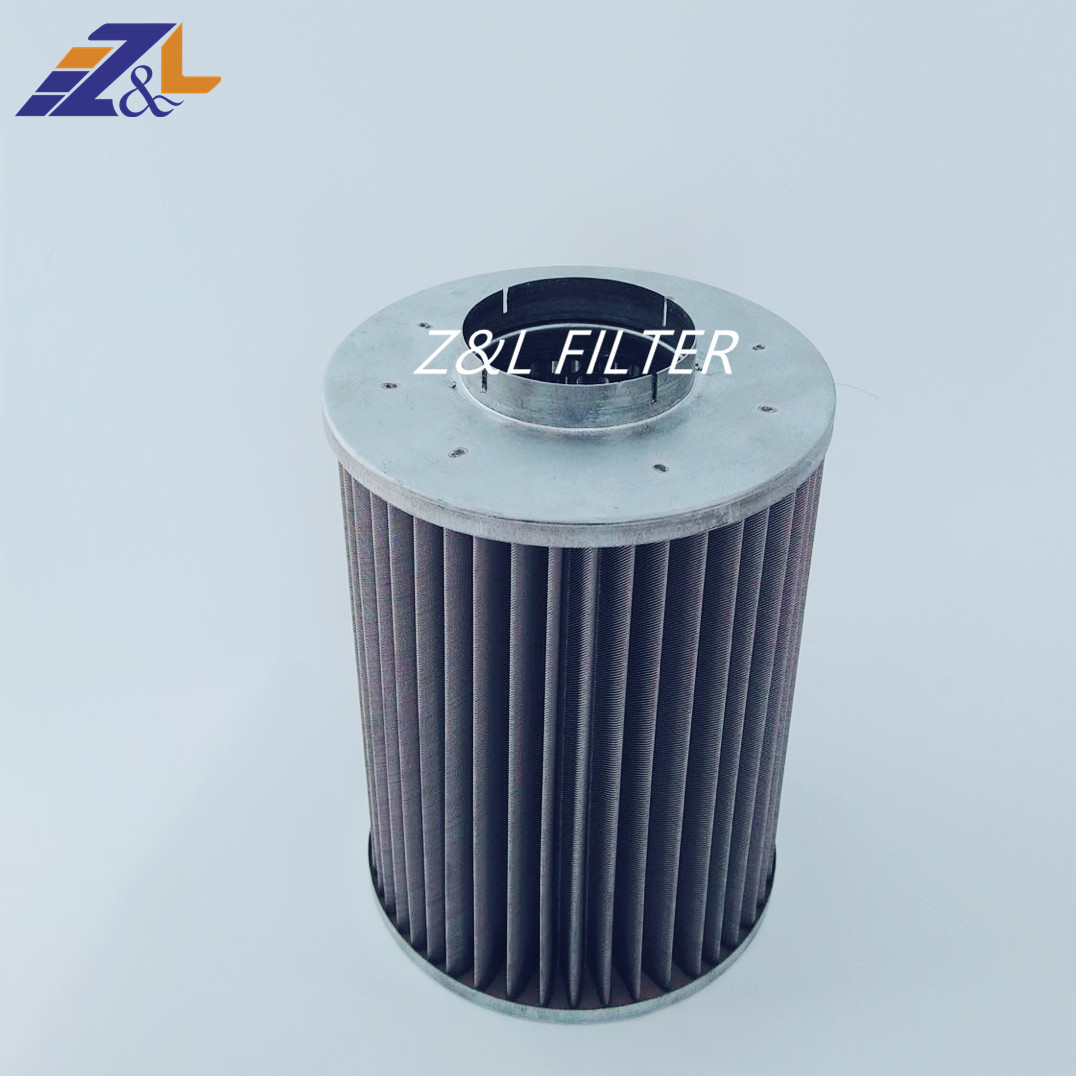

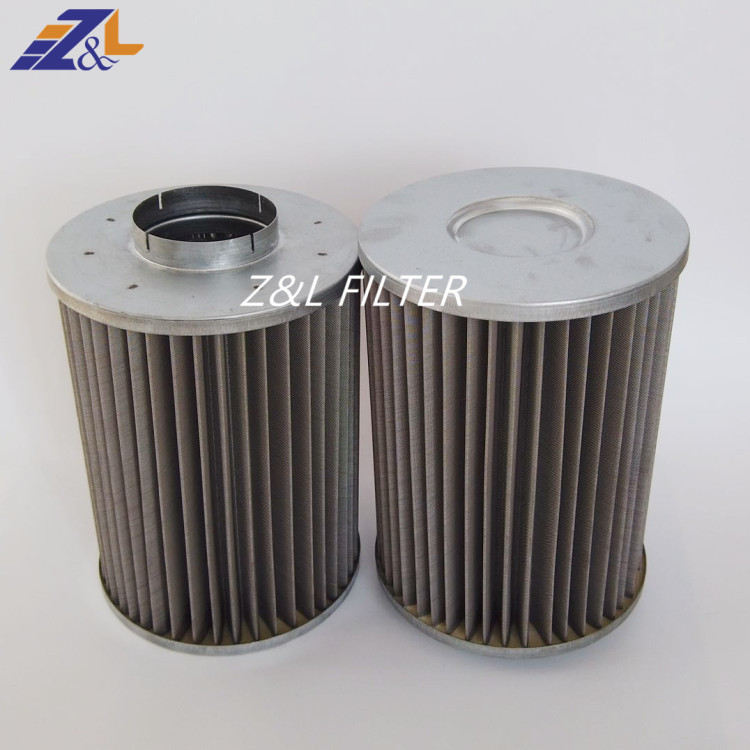

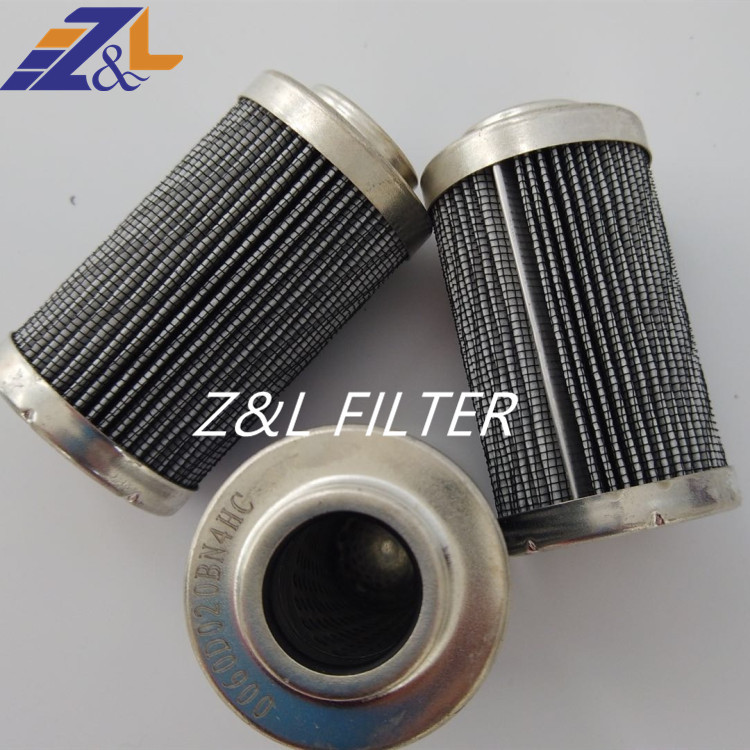

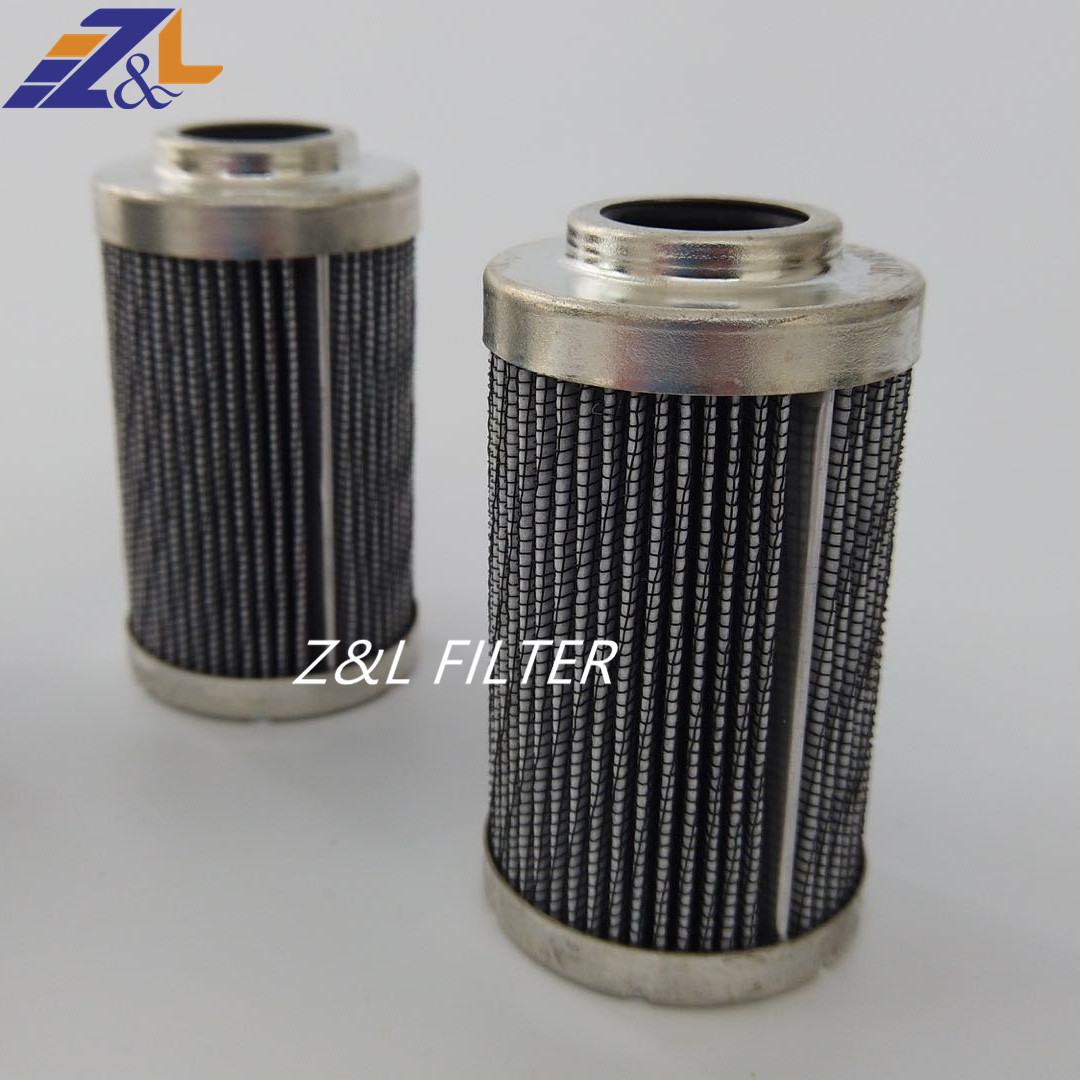

Z&L Filter industrial hydraulic oil filter cartridge 0160D010BN4HC
Quick Details
Applicable Industries: oil filtration
Place of Origin: Hebei, China
Brand Name: Z&L FILTER
Product name: oil filter cartridge
Application: filtration
Filter Material: glass fiber ,steel support ,ss caps/bottoms
Filtration micron: 10 micron
Filtration efficiency : 98%

Product parameters

Produce Name Suction  oil filter cartridge
certification ISO9001
Filter material Galvanized caps and bottoms .ss meshi support.rubber ,glass fiber
Place of origin CHINA
OEM NO. 0160D010BN4HC
Brand name z&l filter
Fits  medium and high pressure in-line filters to protect system components such as valves and hydraulic motors.
Primary Filter Media Source Hv filter or Chinese glassfiber
dimensions Height: 4.8 in
OD Top: 2.9in
ID_Bottom: 1.6 in
Operating Efficiency OE HD 97% Initial Eff. on 10 micron

Z&L Filter industrial hydraulic oil filter cartridge 0160D010BN4HC
Product related series

0160D003BN3HC 0160D010BN4HC 0160D010BH3HC/V
0160D003BH3HC 0160D010BNHC 0160D010BN
0160D003BH3HC/EPR 0160D010BH4HC 0160D010BN3HC/V
0160D003BH3HC/V 0160D010BH4HCV 0160D020BN3HC
0160D003BN3HC/V 0160D010BN4HCVSFREE 0160D020BH3HC
0160D005BN3HC 0160D003BH 0160D020BH3HC/V
0160D005BH3HC 0160D003BH3HC 0160D020BN3HC/V
0160D005BH3HC/V 0160D003BN 0160D020BN
0160D005BN3HC/V 0160D003BN3HC 0160D020B3N3HC
0160D010BN3HC 0160D005BH 0160D010BN
0160D010BH3HC 0160D005BH3HC 0160D010BN3HC
0160D010BH 0160D005BN 0160D020BH
0160D010BH3HC 0160D005BN3HC 0160D020BH3HC
AP48452 BE160P12AV 14350512V
H0160D012EV ABZFDS016010N1001XVA V0162V1C10

Related Supplying:

Hydraulic oil filters
Air filters ,oil and air seaprators
Optional/alternative/replacement Donald air filters
Vocuum pump filters
Excavator,loader ,paver ,milling machine,vechicle,truck ,pump,mixer car,drilling machine ,heavy vehicle,engine ,bux ,power equipment  air filter ,fuel filter ,lube filter.
 Product introduction
Z&L Filter 0160D010BN4HC hydraulic oil filter is installed in the hydraulic system of the oil circuit used to remove the wear of the components of the hydraulic system metal powder and other mechanical impurities to keep the oil circuit clean, prolong the life of the hydraulic system. Filter core filter layer using non-composite glass fiber filter material, high strength, high temperature corrosion resistance, pollution capacity, good filtration performance. The support network inside the filter element is 1.5MM thick spiral welded round hole network, with large support force and strong pressure resistance.
Product advantages
High resistance to variable operating pressures and flow rates contribute to one of the highest dirt-holding capacities and filtration efficiencies on the market
Filters contain more pleats and surface area than many competitors
Consistent filter efficiency, even at high differential pressure
Exceptional value and price-performance ration
Improved system reliability
Decreased number of maintenance operations
Lower maintenance costs
Extended filter element life
Customized solutions for specific filtration challenges
 Product application
Power generation
Agriculture and construction
Material handling
Oil and gas
Power units
Lubrication modules
Mobile hydraulics
Factory equipment
