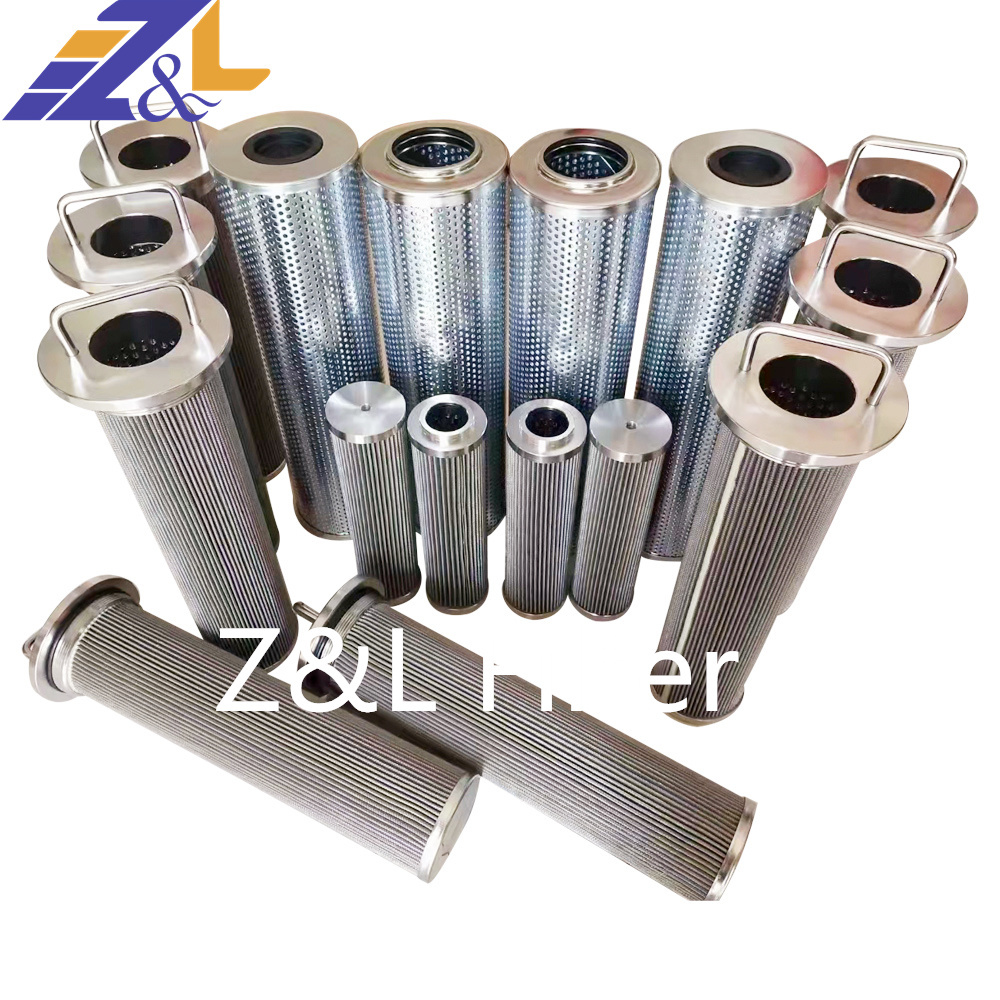

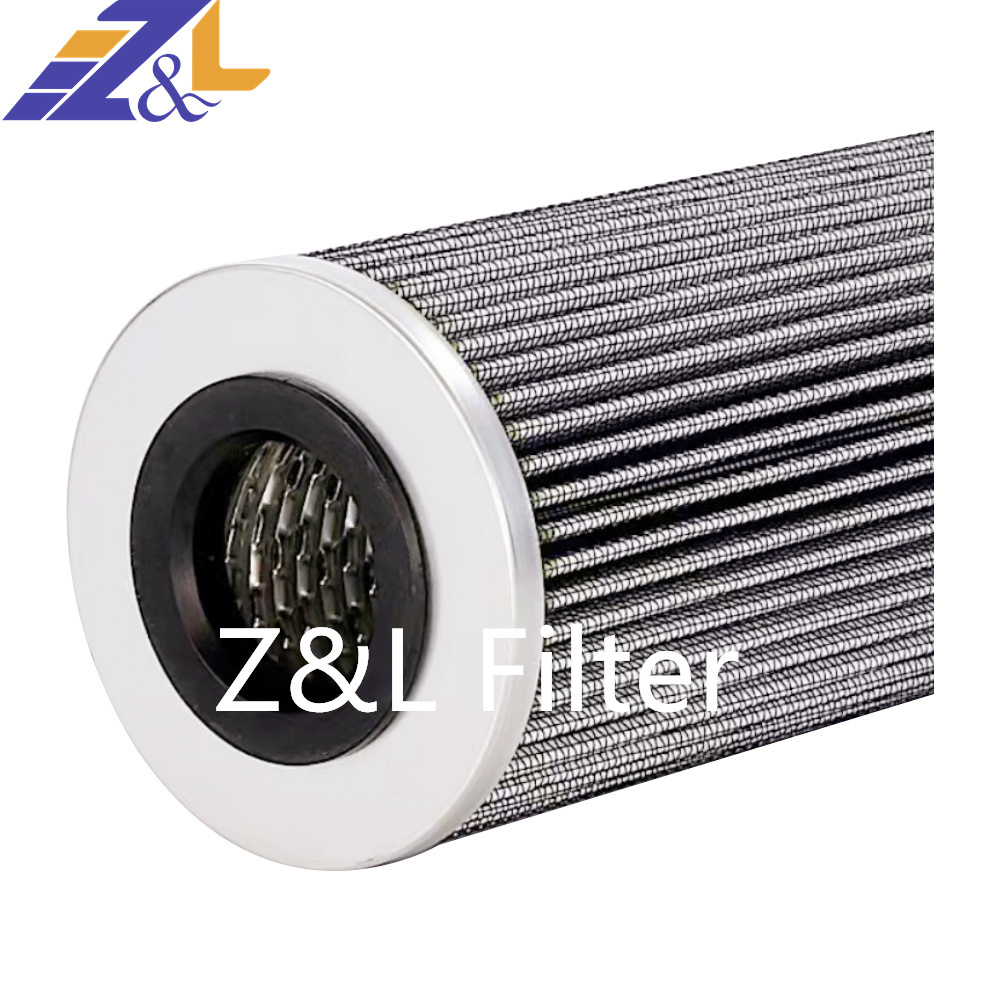

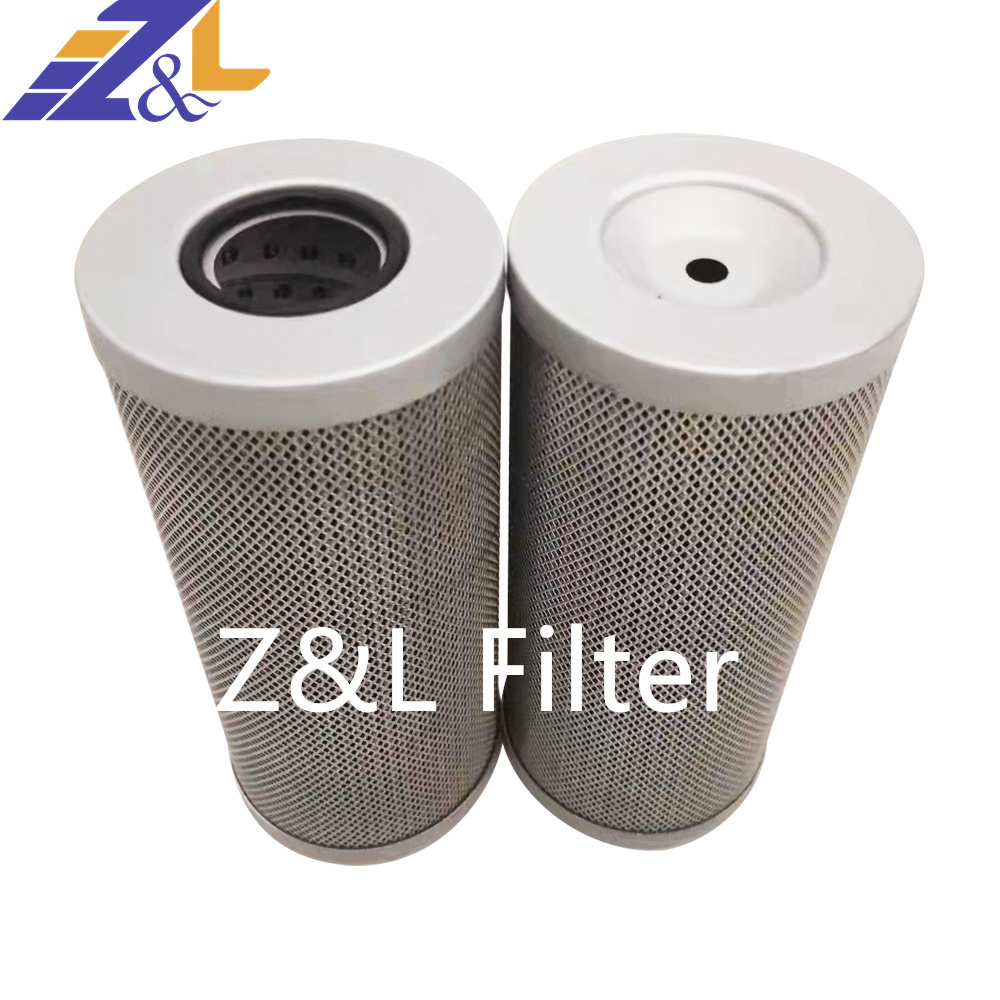

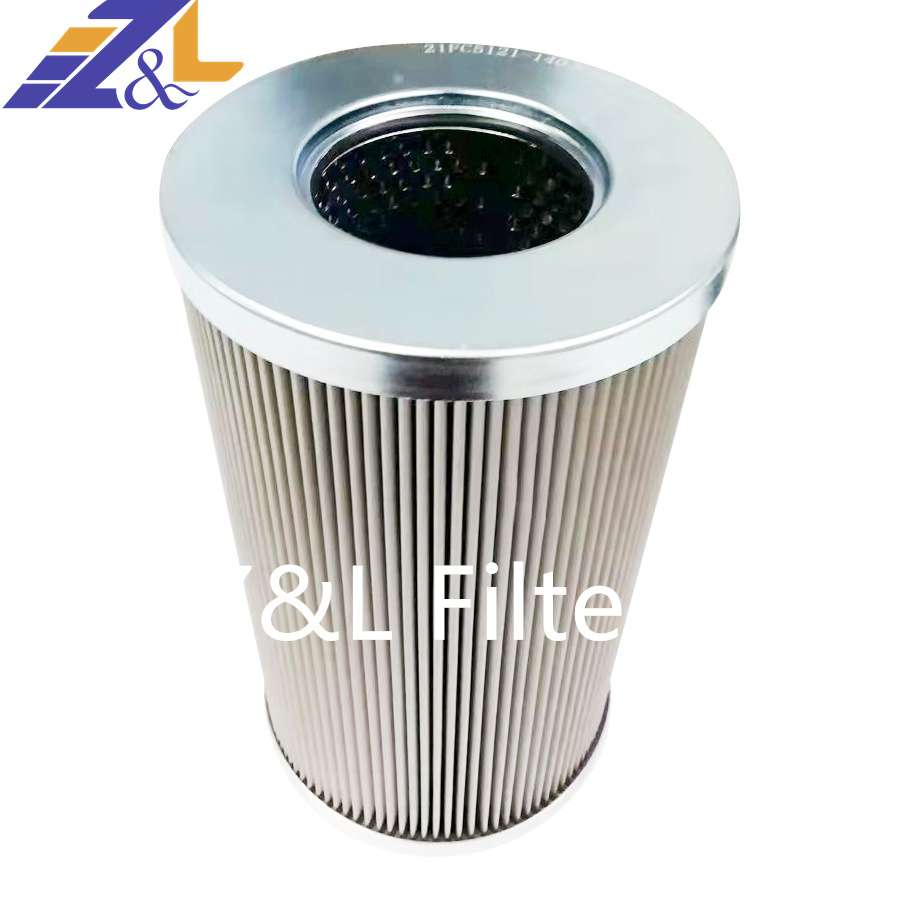

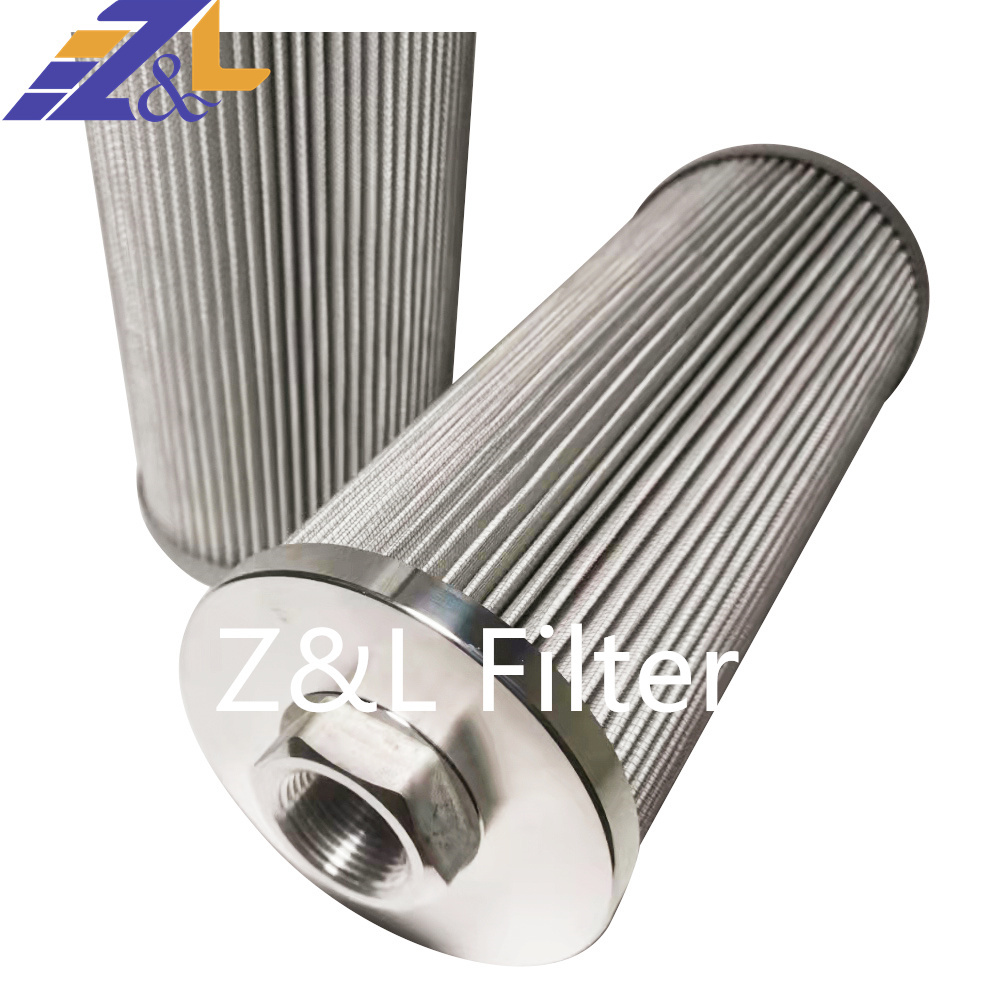

Product Name | hydraulic oil filter cartridge /filter element |
Filter medium | glass fiber |
Support layer | Carbon steel |
Filter cage | Carbon steel |
Pore size | 10.20.25.50.um |
Length | 600-1000mm |
Sealing material | Silastic, NBR, EPDM, |
Airtight method: | thermal bonding technique |
Effective filtration area | 0.4~0.7m²/10" |
Diameter | 50-150mm |
Max. operating temperature | 90°C,(ΔP≤0.1Mpa) |
Max. positive pressure | 0.42Mpa(25°C) |
Max. back pressure | 0.28Mpa(25°C) |
PH value | 1—13 |
Sterilizing temperature | 121°C 30min |
Multi-layered media for increased solids holding capacity |
• Ultra-fine solids removal |
• Maximum water coalescence |
• Balanced cartridge flow characteristics |
• Recommended maximum operating temperature: 240°F (115oC) |
• Withstands in excess of 75 psi differential pressure |
• PH range from 5 to 9 |
• Screw base or open-end configuration |
• Gas Processing | Amine and glycol |
• Natural Gas Production & Gathering | Amine, glycol, produced water, well completion fluids |
• General Industrial | Pre-R.O., well injection, bottle wash, water, solvents,acids, alkalis, alcohols |
• Industrial | Water, solvents, acids, D.I. , alcohols |
• Food & Beverage | Water, flavorings, beer, wine, vinegar |
BE8500/13-03A | H8500/13-003BN | 1.04.13R03BN | 01269072 |
BE8500/13-06A | H8500/13-005BN | 1.04.13R06BN | 01269073 |
BE8500/13-12A | H8500/13-010BN | 1.04.13R12BN | 01269074 |
BE8500/13-25A | H8500/13-020BN | 1.04.13R25BN | 01269075 |
BE8500/26-03A | H8500/26-003BN | 1.04.26R03BN | 01269076 |
BE8500/26-06A | H8500/26-005BN | 1.04.26R06BN | 01266298 |
BE8500/26-12A | H8500/26-010BN | 1.04.26R12BN | 01269077 |
BE8500/26-25A | H8500/26-020BN | 1.04.26R25BN | 01252842 |
BE8500/8-03A | H8500/8-003BN | 1.04.08R03BN | 01269069 |
BE8500/8-06A | H8500/8-005BN | 1.04.08R06BN | 01269070 |
BE8500/8-12A | H8500/8-010BN | 1.04.08R12BN | 01269071 |
BE8500/8-25A | H8500/8-020BN | 1.04.08R25BN | 01268776 |
